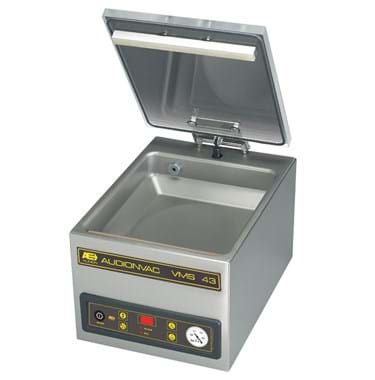

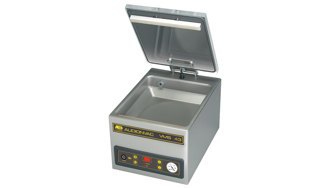

Audionvac VMS 43
Most compact professional table top vacuum packaging machine with flat lid and powerful vacuum pump
Interested in our Audionvac VMS 43?
We are more than willing to support you with your request or run a demo with your packaging
Rock solid machine which gives you benefits for years
The Audion VMS 43 is the smallest vacuum packaging machine of the Audionvac range. But don’t let the size of this vacuum packaging machines trick you as it delivers very professional results.
The VMS 43 model is equipped with the latest technology and a standard double seal, ensuring a high quality packing result.
The compact size makes the Audionvac VMS vacuum packaging machines ideal for restaurants, supermarkets and food processors.
Operators don’t need an extended training as the machine and the way the software is being built up speaks for itself – plug and play.
To sum up:
- Time control
- Flat lid
- Strong and reliable double seal (2 convex seal wires)
- 1 program memory
- 1 seal bar (front): 280 mm
- Powerful 4 m3/h vacuum pump
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Small in footprint - Large in capacity
Despite the small footprint this deep drawn stainless steel vacuum chamber gives you plenty of space to pack even larger size product. The space in the machine can easy be increased with the optional high lid to vacuum pack even bigger products. The included insert plate makes sure you will have a fast cycle and flexible product adjustment.
High quality convex seal wires
This ensures residue being pressed out between the film layers of the bag during the seal process and this limites the risk of leakage. The Audion convex seal wires empower a strong seal resistance thanks to the separation of the residue.
Easy and controlled maintenance
Extend the life shelf of your vacuum packaging machine with the maintenance program. Keep your vacuum packaging machine in good shape and prevent errors.
Stored information is used to get an accurate status overview of the machine in order to act accordingly. Several alarms can be activated to remind you when certain maintenance programs need to be executed.
Plug and play
During the design of Audionvac VMS 43 we placed our users at the centre. This resulted into a professional vacuum machine with ease of installation and operation. Operators don’t need an extended training as the machine and the way the software is being built up speaks for itself – plug and play. Noise level and energy consumption of the Audionvac VMS 43 are reduced to a level hard to beat, all being in favour of the end-user.
Smallest vacuum chamber
Designed for vacuum packaging applications that require maximum removal of air to extend shelf life. These tabletop vacuum packaging machines provide the utmost in reliability, technology and quality. Standard supplied with:
- Time control
- Double seal (2 wires besides each other)
- 4 m3/h vacuum pump
- Standard 1 seal bar(front) 280 mm
- 1 program memory
- Insert plate for a faster cycle and product adjustment
- Maintenance friendly and easy to clean construction
- Deep drawn stainless steel vacuum chamber
- 3 year warranty
Benefits
The Audionvac VMS 43 gives you the following benefits
- Optimum hygiene:
- Standard double seal (2 wires); convex (round) sealing wires for more product protection and safer sealing results.
- Time control:
- To set the time for vacuuming and seal cycles for a constant and guaranteed end result.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle or to adjust the product positioning.
- Ease of use:
- User friendly digital control panel, plug and play.
- Vacuum pump:
- 4 m3/h vacuum pump for a fast packaging cycle.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; seal bar is easily removable for cleaning and maintenance.
- Lid:
- Flat transparent lid, suitable for checking packaging process.
- Chamber:
- Stainless steel easy to clean deep chamber - for small sized packages.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VMS 43
- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- High lid:
- For higher products, increases the effective chamber height by 45 mm.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Inclined plate:
- For vacuum sealing liquids and powders. The bag can be positioned in a certain angle ensuring that the product stays at its place.
- Trolley:
- A compact trolley equipped with swiveling castors with brakes, ideal to move the vacuum machine.
- Alternative power supply:
- 100V-1P-50/60Hz | 115V-1P-60Hz | 220V-1P-60Hz
Spare parts
Discover the available spare parts for your VMS 43. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VMS 43
Specifications
More specifications of the Audionvac VMS 43
- Seal bar front:
- 280 mm
- Seal width:
- 3,5 mm double seal (convex sealing wires)
- Effective chamber size (LxWxH):
- 310 x 280 x 85 mm
- Pump capacity:
- 4 m3/h
- Digital control panel:
- 1 program memory
- Machine cycle:
- 25 – 60 sec
- Chamber material:
- Stainless steel chamber and transparant lid
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 230V-1P-50Hz (standard)
- Power consumption:
- 0,3 kW
- Weight:
- 26 kg
- Machine dimensions (LxWxH):
- 450 x 334 x 305 mm
Explore our options
Customize your Audionvac VMS 43 to your needs
Sensor control
Vacuum packaging machines equipped with Sensor control calculate when the pre-set percentage has been achieved. This guarantees a constant end vacuum of your package. Always. Especially recommended when packing various types of products with different volume.
Inclined insert plate:
Convenient for packing liquids and powders, such as soups and flour. The inclined insert plate accomodates that products can be placed in an angled position, facilitating that the product stays at its place.
High lid
This option offers a usable chamber height of 130 mm which allows you to vacuum pack higher products.
Cut-off seal
Cut-off seal, to easily tear off the residual film above the seal, for optimized hygiene.
