Contimed D 660

Contimed D 660

This tabletop stainless steel band sealer (non-validatable) seals PE, PP, PA/PE, header cards and other heat sealable alu laminate pouches. The D 660 produces a strong 9 mm seal and the digital LCD display facilitates adjustment of seal temperature and seal temperature alarm. Speed: 8 mtr/minute. Integrated cooling (for sealing PE). Compatible to DIN 58953-7.

Band sealer

Contimed D 660

Product information

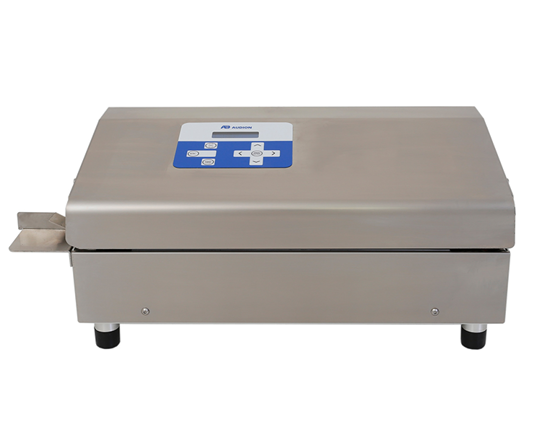

Contimed D 660

This cost-effective rotary sealer offers high user convenience. The D 660 produces a 9 mm knurled seal with a throughput of 8 mtr/minute. An alarm on temperature can be set to ensure correct seal temperature. Seal temperature can digitally be adjusted up to 220°C with an accuracy of ± 1%. The D 660 integrates automatic seal pressure adjustment to adjust the seal to various film thicknesses (85N seal pressure).

The D 660 generates an excellent seal quality. Together with the durable easy-to-clean stainless steel housing, this rotary sealer offers a compact, cost-effective packaging solution for sealing PE, PP, PVC, multilayered pouches, medical bags (uncoated synthetic paper) or bags with header cards.

For additional convenience you can expand the D 660 with accessories like a conveyor belt or roller table to support the products and optimize the packaging process. This keeps your hands free to directly feed the next pouch into the machine.

Advantages:

High level of user-convenience
Fast throughput-speed (8 mtr/min)
High-quality 9 mm knurled seal
Automatic seal pressure regulation
Energy saving cool-run function (to be initiated when production has completed)
Compatible to DIN 58953-7 and EN 868-5

Benefits

The Audion Contimed D 660 gives you as end-user the following benefits

Film sealability

Adjustable seal temperature:: Seal temperature can be adjusted from 10 - 220°C (± 1%)
Temperature alarm setting:: To control the quality of the seal an alarm can be set for seal temperature deviation (warning by ± 5°C difference from preset temperature)
Fast throughput speed:: 8 meter/minute optimizes the workflow
Seal pressure regulation:: Seal force adjusted to package thickness
Infeed guide:: Free edge over the seal 0 - 32 mm
User-friendly LCD display:: LCD display with 2 lines of 16 characters each
Stainless steel design:: For convenient and hygienic cleaning
Easy-to-use: Requires minimal operator training

Specifications

Please see below more specifications of the Audion Contimed D 660

Type of machine:: Rotary sealer, semi automatic
Article number:: D 660
Model:: Tabletop
Seal width:: 9 mm knurled seal
Throughput speed:: 8 meter/minute (fixed)
Seal length:: Unlimited
Communication interface:: No
Control panel:: Digital
Covering:: Stainless Steel
Knife:: No
Type of film:: PE, PP, PVC, multilayered pouches, medical bags (Tyvek®) or bags with header cards
Thickness of film:: 2 x 100 micron
Compatibilty:: DIN 58953-7
Type of package:: Bag, Pouch
Pedal operated:: No
Branche/Application:: Parts, Pharmaceutical, Medical, Healthcare
Weight:: 18 kg
Dimensions:: 554 x 270 x 237 mm
Power supply:: 230 - 240 V 50 Hz
Power consumption:: 500 W
Acoustic emission level:: 70 dB(A)

Everything-under-one-roof, match the Contimed D 660 with Audion film

Click here

Accessories available

Work table for Contimed

Provides bag support during the sealing and ensures equal sealing performance

Motorized conveyor for Contimed D 660(V) or D 662 MV

Motorized conveyor belt with input plate

Roller table for Contimed D 660/D 662/ D 666

Roller table for Contimed sealers

Entrepreneurship

We love challenges and seize opportunities. It is simply in our DNA.

Commitment

We are dedicated to deliver a high customer value and customer satisfaction which form a paramount contribution to our success.

Co-operation

Our broad knowledge of customer needs and our global, highly committed dealer network, sharing market insights lead to demand-driven innovations, building long lasting relationships.

D 660 validatable version (D 660 V)

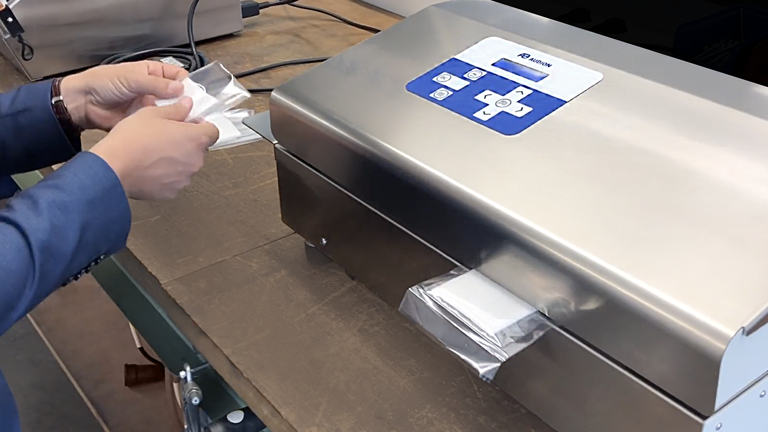

The D 660 in action

With its fast throughput, operating convenience and heavy-duty design, the D 660 is deployable in a wide range of industries.

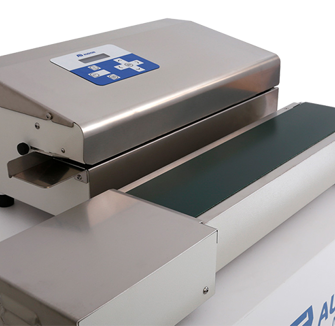

In addition to the standard features, you can upgrade this band sealer with convenient accessories such as a motorized conveyor belt, roller table or worktable, all to support your bags during sealing, to optimize the seal process and a straight 9 mm seal.

The Contimed D 660
