Audionvac VM 243
Medium-sized double aluminum deep chamber vacuum machine with monitoring glass in lid
Interested in our Audionvac VM 243?
We are more than willing to support you with your request or run a demo with your packaging
Doubled output with two aluminum chambers

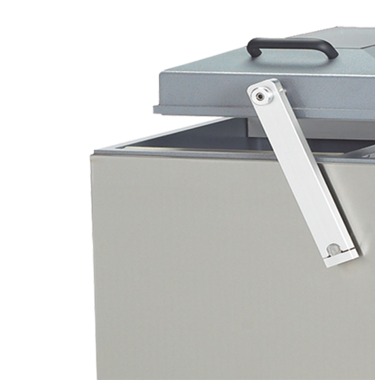

Optimize your workflow with this double deep chambered Audionvac, that enables to process larger product sizes. The ergonomic lid features a useful monitoring glass to supervise the packaging proceedings.
Both chambers are equipped with two seal bars (front/back), which makes it possible to pack multiple batches at once. Each cycle is finished with a reliable double seal and excellent vacuum results, realized by a powerful and maintenance-friendly 63 m3/h vacuum pump.
To create the best fit for your products (food or non-food), this vacuum solution is fully configurable. Various options guarantee the best presentation and preservation of food, while others will be very useful for vacuum-packing electrical (static electricity sensitive) components or other parts. Regardless, your Audionvac VM 243 will seamlessly match both your products and operations.
To sum up:
- Digital control panel (time controlled)
- Two seal bars (front-back, 2 seal wires per seal bar)
- Aluminum deep chamber and lid with monitoring glass
- Powerful vacuum pump (63 m3/h)
- Configurable to your products and packaging requirements
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Robust and durable design
The clever ergonomic design combined with the use of only high quality materials make the Audionvac VM 243 a reliable addition to your packaging operations. In addition, you will benefit from a 3-year manufacturer's warranty on the operation of the machine and the pump (provided proper maintenance has been carried out). (Wearing) parts are quickly available from stock.
Optimum packaging results
The configurable Audionvac VM 243 ensures the best and safest packaging results to protect and preserve your products. You can effortlessly process a wide variety of film types and products, including sharp, electrostatic sensitive and/or unusually shaped medium-large items with a high level of convenience and efficiency.
Enhanced protection of your medium-large products

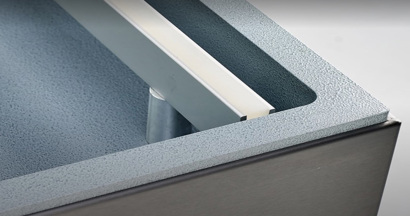

Each chamber is equipped with 2 seal bars that all feature a double seal configuration. Therefore, several batches of (larger) items can be processed in one packaging cycle. The double Convex seal wires offer a strong and reliable seal over the entire width of the bag. Utmost protection of your products is guaranteed.
Improved workflow and convenience
The digital control panel is clearly laid out and seal parameters are easily set. In addition, multiple programs can be stored and recalled in order to have ideal settings for each different product and/or product size at hand. In this way minimized production failure and maximized output results are guaranteed.
Double vacuum chamber with aluminum deep chambers and lid with sight glass

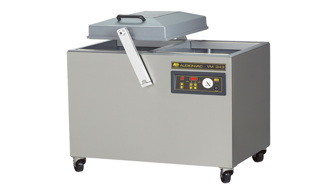

The Audionvac VM 243 floor standing vacuum packaging machine. This vacuum packaging machine has a deep aluminum vacuum chamber and aluminum lid. Standard equipped with:
- Time control
- Soft air to vacuum seal sharp products
- 63 m3/h vacuum pump
- Double seal (2 convex sealing wires)
- 2 seal bars (front - back)
- 10 program memory
- Insert plate included for a faster cycle and product adjustment
- 3 years warranty
Benefits
The Audionvac VM 243 gives you as end-user the following benefits
- Maximum efficiency:
- Standard 2 seal bars for optimized output.
- Optimum hygiene:
- Standard double seal (2 wires); convex sealing wires for safer sealing results.
- Time control:
- To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
- Soft air:
- To pack fragile or sharp products without damaging the products and the bag.
- 10 program memory:
- Quick selection of the correct program for your products.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
- Ease of use:
- User friendly digital control panel, plug and play.
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
- Vacuum pump:
- 63 m3/h vacuum pump for a fast packaging cycle.
- Aluminum lid with sight glass:
- To supervise the proceeding packaging process.
- Deep aluminum chamber:
- For vacuum packaging of higher products.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; Silicone holders are easily removable for cleaning and maintenance.
- Construction:
- High quality material, maintenance friendly and easy to clean construction.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VM 243
- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- 1-2 cut-off seal:
- Same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
- Wide seal:
- 10 mm flat seal for a more aesthetic and professional sealing result.
- Bi-active seal:
- Recommend to use when vacuum sealing aluminum or thicker bags. The vacuum bag is being sealed from both sides of the bag.
- ESD (Electrostatic Discharge):
- To pack electrostatic products such as wafers, chips, motherboards and prints. When this occurs during the vacuum packaging cycle, it can cause damage to the product. The Audion ESD technology prevents this.
- Aluminum end blocks:
- For heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Liquid control:
- The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
- Inclined plate:
- Enables liquid products to be placed in an angle to avoid the bag content from spilling.
- Gas flush:
- Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- Number of gas nozzles:
- Per sealing bar - front/back (3/3).
- Alternative power supply:
- 230V-1P-50Hz | 220V-1P-60Hz | 200V-3P-50/60Hz | 220V-3P-60Hz
Spare parts
Discover the available spare parts for your VM 243. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VM 243
Specifications
More specifications of the Audionvac VM 243
- Seal bar front-back:
- 450 / 450 mm
- Seal width:
- 2 x 3,5 mm double seal (convex sealing wires)
- Effective chamber size (LxWxH):
- (2x) 580 x 450 x 235 mm
- Pump capacity:
- 63 m3/h
- Digital control panel:
- 10 program memory
- Machine cycle:
- 15 – 40 sec
- Chamber material:
- Aluminum lid with sight glass and deep aluminum chamber
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 400V-3P-50Hz (standard)
- Power consumption:
- 1,6 - 2,1 kW
- Weight:
- 236 kg
- Machine dimensions (LxWxH):
- 900 x 1060 x 1070 mm
Explore our options
Customize your VM 243 to your needs
Heavy duty packing
Aluminum end blocks ensure an efficient and durable vacuum packaging process under the most extreme conditions.
Sensor control
Vacuum packaging machines equipped with Sensor control calculate when the pre-set percentage has been achieved. This guarantees a constant end vacuum of your package. Always. Especially recommended when packing various types of products with different volume.
Wide seal
10 mm wide seal gives a aesthetic and professional result.
Gas flush
Injecting a gas before the sealing phase increases the product's shelf life, it offers extra protection and it prevents the product from colouring.
ESD (Electrostatic Discharge )
Enables the safe and carefree vacuum packaging of delicate electronical parts, e.g. RAM, graphic cards, or other electronic components. This feature prevents damage by sudden ESD and safeguards your product quality during the packaging process.
Cut-off or 1-2 cut off seal
Cut-off seal to easily tear off the residual film for optimized hygiene. 1-2 Cut off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
Let's have a chat
Do you want to know what the Audion VM 243 can offer for your company? Please feel free to contact us as we are looking forward to explore together which packing solutions benefits you most.
