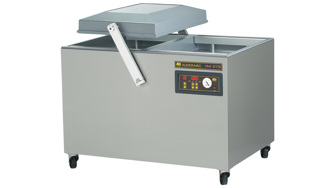

Audionvac VM 273

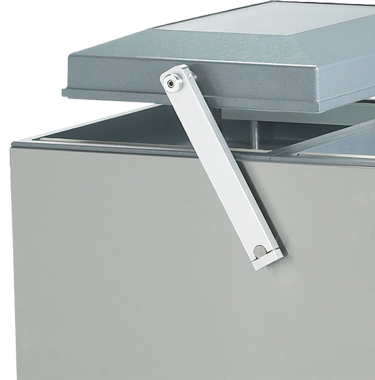

XL aluminum deep vacuum chamber featuring an ergonomic lid with monitoring glass and powerful vacuum pump
Interested in our Audionvac VM 273?
We are more than willing to support you with your request or run a demo with your packaging
Ideal for large sized food/non-food products
This industrial double vacuum chamber maximizes your operational output thanks to its double chamber configuration that enables efficiently packing batches of (large sized) products. Each aluminum deep chamber is equipped with two sealing bars, which enables multiple packages to be securely packed at once. In addition, a handy sight glass on the aluminum lid provides an end-to-end overview of the packing cycle.
A user-friendly digital control panel allows you to easily operate the machine and features a 10-program memory that ensures the ideal settings always at hand for each product.

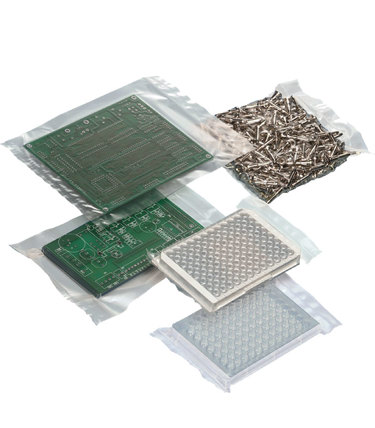

The integrated powerful vacuum pump creates a perfect vacuum packed end result, whether you are packing food, delicate circuit boards or screws. VM 273's configurable flexibility makes it suitable for multiple applications.
To sum up:
- Time controlled digital control panel, 10 programs
- Two seal bars (front-back, 2 seal wires per bar)
- Powerful vacuum pump (100 m3/h)
- Two aluminum deep chambers, lid with monitoring glass
- Large chamber volume for processing larger products
- Configurable to your product and packaging requirements
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Boosting productivity
Enhance your workflow and output, while reducing waste. The double chamber machine configuration allows products to be prepared, while the other chamber is in operation. This significantly improves your efficiency.
Ideal for larger products or portions
The spacious vacuum chambers can accommodate high volumes of large products. Ideal for companies that wish to seal larger products / portions at the same time, with maximized efficiency and convenience.
Ultimate protection
Standard equipped with double rounded (Convex) seal wires (2 x 3.5) mm, that pushes liquid or powdery contents to the side. This ensures a powerful airtight seal over the entire length and thus guarantees optimum hygiene and quality preservation of your products.
Minimal training required
Standard integrated with an convenient digital control panel and clearly laid out display, an easy-to-set 10 program memory. The multiple programs stored can be recalled at any time enabling a swift switch over between different products and/or film types.
Aluminum double chamber vacuum packaging machine
The Audionvac range exists out of two types: the VM and the VMS. The difference between the two ranges is the material of the vacuum chamber and lid: stainless steel or aluminum. The VM range is made of stainless steel housing with an aluminum vacuum chamber and aluminum lid.
Standard the VM 273 is equipped with:
- Time control
- Soft air to vacuum seal sharp products
- 100 m3/h vacuum pump
- Double seal (2 convex sealing wires)
- 2 seal bars front and back
- 10 program memory
- Insert plate included for a faster cycle and product adjustment
- 3 year warranty
Benefits
The Audionvac VM 273 gives you the following benefits
- Maximum efficiency:
- Standard 2 seal bars for optimized output.
- Optimum hygiene:
- Standard double seal (2 wires); convex sealing wires for safer sealing results.
- Time control:
- To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
- Soft air:
- To pack fragile or sharp products without damaging the products and the bag.
- 10 program memory:
- Quick selection of the correct program for your products.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
- Ease of use:
- User friendly digital control panel, plug and play.
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
- Vacuum pump:
- 100 m3/h vacuum pump for a fast packaging cycle.
- Aluminum lid with sight glass:
- To supervise the proceeding packaging process.

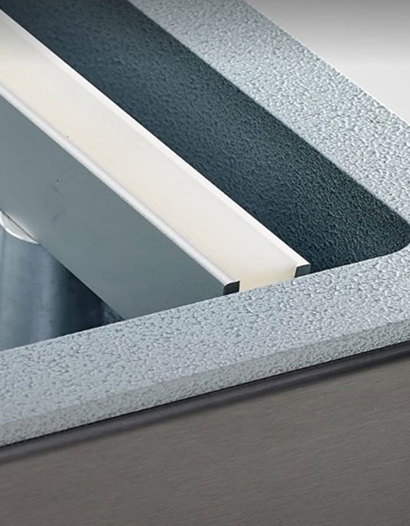

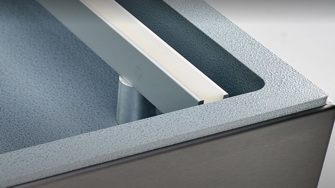

- Deep aluminum chamber:
- For vacuum packaging of higher products.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; Silicone holders are easily removable for cleaning and maintenance.
- Construction:
- High quality material, maintenance friendly and easy to clean construction.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VM 273

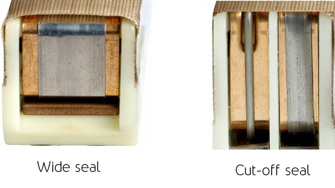

- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- 1-2 cut-off seal:
- Same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
- Wide seal:
- 10 mm flat seal for a more aesthetic and professional sealing result.
- Bi-active seal:
- Recommend to use when vacuum sealing aluminum or thicker bags. The vacuum bag is being sealed from both sides of the bag.
- ESD (Electrostatic Discharge):
- To pack electrostatic products such as wafers, chips, motherboards and prints. When this occurs during the vacuum packaging cycle, it can cause damage to the product. The Audion ESD technology prevents this.
- Aluminum end blocks:
- For heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Liquid control:
- The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
- Inclined plate:
- Enables liquid products to be placed in an angle to avoid the bag content from spilling.
- Gas flush:
- Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- Number of gas nozzles:
- Per sealing bar - front/back (3/3).
- Alternative power supply:
- 200V-3P-50/60Hz | 220V-3P-60Hz
Spare parts
Discover the available spare parts for your VM 273. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VM 273
Specifications
More specifications of the Audionvac VM 273
- Seal bar front-back:
- 550 / 550 mm
- Seal width:
- 2 x 3,5 mm double seal (convex sealing wires)
- Effective chamber size (LxWxH):
- (2x) 700 x 550 x 235 mm
- Pump capacity:
- 100 m3/h
- Digital control panel:
- 10 program memory
- Machine cycle:
- 15 – 40 sec
- Chamber material:
- Aluminum lid with sight glass and deep aluminum chamber
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 400V-3P-50Hz (standard)
- Power consumption:
- 2,3 - 2,9 kW
- Weight:
- 319 kg
- Machine dimensions (LxWxH):
- 1020 x 1260 x 1070 mm
Explore our options
Customize your VM 273 to your needs.
Heavy duty packing
Aluminum end blocks ensures an efficient and durable vacuum packaging process under the most extreme conditions.
Gas flush
Injecting a gas before the sealing phase increases the product's shelf life, it offers extra protection and it prevents the product from colouring.

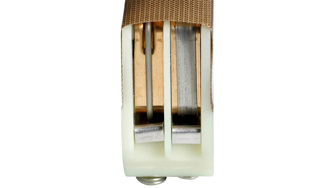

Cut-off or 1-2 cut off seal
Cut-off seal, to easily tear off the residual plastic. 1-2 cut off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately
ESD (Electrostatic Discharge)
When packing electrostatic products such as wafers, chips, motherboards and prints . When this occurs during the vacuum packaging cycle, it can cause damage to the product. The Audion ESD technology prevents this.
Sensor control
Vacuum packaging machines equipped with Sensor control calculate when the pre-set percentage has been achieved. This guarantees a constant end vacuum of your package. Always. Especially recommended when packing various types of products with different volume.
Seal configuration
The right seal configuration protects products efficiently against external elements. Audion offers several seal configurations in order to fulfil the high demands of our customers.
Let's have a chat
Do you want to know what the Audion VM 273 can offer for your company? Please feel free to contact us as we are looking forward to explore together which packing solutions benefits you most.
