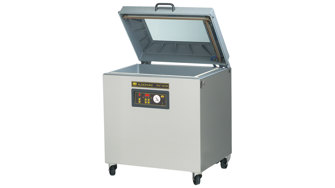

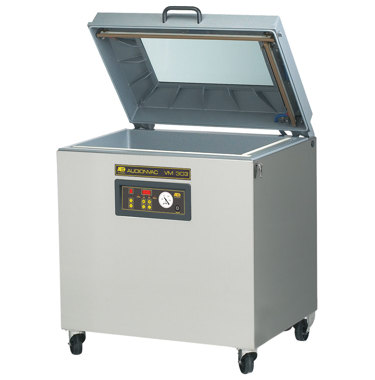

Audionvac VM 303
XL floor model vacuum chamber with aluminum deep chamber, lid with monitoring window and multiple seal bar configurations
Interested in our Audionvac VM 303?
We are more than willing to support you with your request or run a demo with your packaging
Effectively protecting voluminous products
The biggest floor standing vacuum chamber with aluminum deep chamber, designed for heavy duty packaging of larger food and non-food products. The rounded chamber edges enable easy-cleaning and the aluminum high lid features a monitoring glass to supervise the proceeding packaging process.
Vacuum-, gas and seal time can effortlessly be stored in the digital control panel that features a 10 program memory. Therefore, you always have the ideal settings at hand, when vacuum sealing different package sizes and/or film types. A powerful low-maintenance 100 m3/h vacuum pump continuously provides a safely vacuum packaged product.
An extensive range of options is available to finetune the Audionvac VM 303 to your product, optimizing product protection and efficiency.
For instance the Soft air option for packing sharp items, e.g. meat on sticks, prints or nuts and bolts etc. This option will let air gradually back into the chamber (time controlled), to prevent damaging the content or bag itself is.
To sum up:
- Powerful vacuum pump (100 m3/h)
- Digital control panel, 10 programs (time controlled)
- Configurable to efficiently produce the best fit packaging
- Aluminum deep chamber and lid with monitoring glass
- Two seal bars (front-right, 2 seal wires per bar)
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Cost-effectiveness and efficiency
The clever design in combination with the high quality materials makes the Audionvac VM 303 a robust and durable vacuum chamber. The stainless steel construction with round corners ensures an easy to clean machine that is reliable and low maintenance. The chamber is equipped with 2 sealbars, enabling multiple packages to be vacuumed at once.
4 seal bar configurations
With its huge vacuum chamber and four seal bar configurations, this vacuum chamber machine is designed to meet the needs for large industrial vacuum packaging operations. It can handle long portions or large quantities of bags simultaneously, especially with the optional 3 sealbar configuration (left-front-right).
Reliable, durable and sustainable
In today’s world, everyone relies on their products. It is crucial that equipment functions with highly efficient performance. When they fail to do so, it can lead to the customer being exasperated. Therefore, Audion offers a warranty period of 3 years on the Audionvac VM 303. Spare parts are easy and widely available. This guarantees a safe and reliable function of your product for now and for the future.
Guarantees a short machine cycle
Its heavy-duty 100 m3 vacuum pump provides a reliable heavy-duty seal and vacuum each and every time. The powerful vacuum pump minimizes the cycle time, making this model even competitive to the tabletop models.
Aluminum single chamber vacuum packaging machine
The Audionvac VM 303 floor standing vacuum packaging machine has a strong solid aluminum vacuum chamber with an aluminum lid. Standard equipped with:
- Time control
- Soft air to vacuum seal sharp products
- 100 m3/h vacuum pump
- Double seal (2 convex sealing wires)
- 2 seal bars front and right
- 10 program memory
- Insert plate included for a faster cycle and product adjustment
- 3 year warranty
Benefits
The Audionvac VM 303 gives you as end-user the following benefits
- Maximum efficiency:
- Standard 2 seal bars for optimized output, different seal bar configurations possible.
- Optimum hygiene:
- Standard double seal (2 wires); convex sealing wires for safer sealing results.
- Time control:
- To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
- Soft air:
- To pack fragile or sharp products without damaging the products and the bag.
- 10 program memory:
- Quick selection of the correct program for your products.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
- Ease of use:
- User friendly digital control panel, plug and play.
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
- Vacuum pump:
- 100 m3/h vacuum pump for a fast packaging cycle.
- Aluminum lid with sight glass:
- To supervise the proceeding packaging process.
- Deep aluminum chamber:
- For vacuum packaging of higher products.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; Silicone holders are easily removable for cleaning and maintenance.
- Construction:
- High quality material, maintenance friendly and easy to clean construction.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VM 303

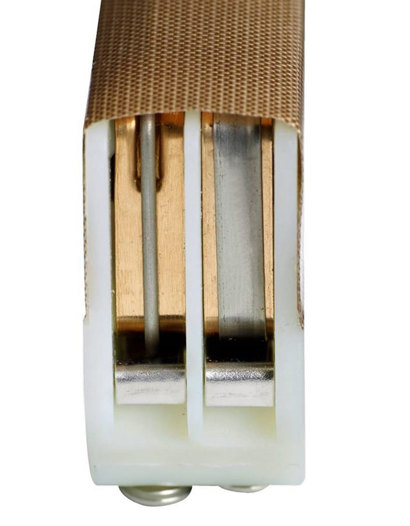

- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- 1-2 cut-off seal:
- Same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
- Wide seal:
- 10 mm flat seal for a more aesthetic and professional sealing result.
- Bi-active seal:
- Recommend to use when vacuum sealing aluminum or thicker bags. The vacuum bag is being sealed from both sides of the bag.
- ESD (Electrostatic Discharge):
- To pack electrostatic products such as wafers, chips, motherboards and prints. When ESD occurs during the vacuum packaging cycle, it can cause damage to your product. The Audion ESD technology prevents this.
- Aluminum end blocks:
- For heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Liquid control:
- The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
- Inclined plate:
- Enables liquid products to be placed in an angle to avoid the bag content from spilling.
- Gas flush:
- Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- Number of gas nozzles:
- Per sealing bar - front/right (4/3); left/right (3/3); front/back (4/4); left/front/right (3/4/3).
- Power supply:
- 200V-3P-50/60Hz | 220V-3P-60Hz
Spare parts
Discover the available spare parts for your VM 303. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VM 303
Specifications
More specifications of the Audionvac VM 303
- Seal bar front-right:
- 760 / 510 mm (standard)
- Seal bar front-back:
- 810 / 810 mm
- Seal bar left-right:
- 560 / 560 mm
- Seal bar left-front-right:
- 510 / 700 / 510 mm
- Seal width:
- 2 x 3,5 mm double seal (convex sealing wires)
- Effective chamber size (LxWxH):
- 510 x 760 x 235 mm (standard)
- Pump capacity:
- 100 m3/h
- Digital control panel:
- 10 program memory
- Machine cycle:
- 15 – 40 sec
- Chamber material:
- Aluminum lid with sight glass and deep aluminum chamber
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 400V-3P-50Hz (standard)
- Power consumption:
- 2,3 - 2,6 kW
- Weight:
- 227 kg
- Machine dimensions (LxWxH):
- 820 x 900 x 1050 mm
Explore our options
Customize your Audionvac VM 303 to fit it to your needs
ESD (Electrostatic Discharge)
Enables the safe and carefree vacuum packaging of delicate electronical parts, e.g. RAM, graphic cards, or other electronic components. This feature prevents damage by sudden ESD and safeguards your product quality during the packaging process.
Heavy duty packing
Aluminum end blocks ensures an efficient and durable vacuum packaging process under the most extreme conditions.
Bi-active seal
Used when vacuum sealing aluminium or thicker bags. There will be a seal bar mounted on both the inside of the lid as the front of the vacuum chambers.
Cut-off or 1-2 cut off seal
Cut-off seal, to easily tear off the residual film, for optimized hygiene due active prevention of dirt build-up inside the bag mouth area above the seal.
Let's have a chat
Do you want to know what the Audion VM 303 can offer for your company? Please feel free to contact us as we are looking forward to explore together which packing solutions benefits you most.
International Sales
Audion
