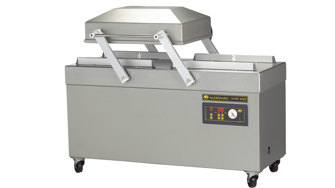

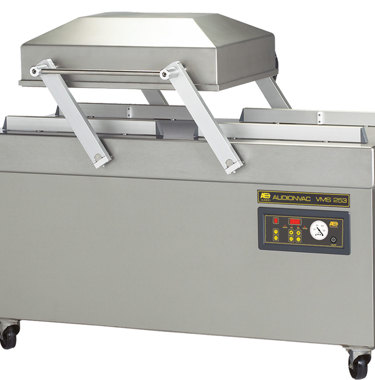

Audionvac VMS 253
Smallest among the double chamber vacuum machines, 63 m3/h pump and fully customizable
Interested in our Audionvac VMS 253?
We are more than willing to support you with your request or run a demo with your packaging
Rock solid machine which gives you benefits for years
Are you looking for high capacity? Or do you want to pack larger products and would a single vacuum chamber machine not be sufficient?
The Audionvac VMS 253 is the next step after the single chamber vacuum machines. The VMS 253 has a double chamber which offers much more volume and capacity for vacuum packing – whether liquid or solid.
Medium or larger products will be great to pack in this double vacuum chamber machine. Besides, the VMS 253 works faster and more efficiently than a single chamber, due to the powerful pump and multiple integrated seal bars in each vacuum chamber.
To sum up:
- Fully customizable up to your product
- Improved ergonomics
- Optimal production output
- Guaranteed operational safety
- Powerful 63 m3/h vacuum pump
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Ultimate ease of use
A table height, flat deck design provides the ultimate utility, offering increased production and speedy operation. Smooth-rolling casters on each side allows you to move Audionvac VMS 253 easily for cleaning, maintenance or relocation.
Increase capacity, larger products
When you require a high output or pack larger products, a single vacuum chamber machine would not be sufficient enough. The VMS 253 is the answer, offering much more volume, capacity, working faster and more efficiently than a single chamber, so covering a greater distance in a shorter time.
Reliable, robust and durable
In today’s world, everyone relies on their products. It is crucial that equipment functions with highly efficient performance. When they fail to do so, it can lead to the customer being exasperated. Therefore Audion offers a warranty period of 3 years on the Audionvac VMS 253. Spare parts are easy and widely available. This guarantees a safe and reliable function of your product for now and for the future.
Plug and play
During the design of Audionvac VMS 253 we placed our users at the centre. This resulted into a professional vacuum machine, industrial grade, with ease of installation and operation. Operators don’t need an extended training as the machine and the way the software is being built up speaks for itself – plug and play. Noise level and energy consumption of the Audionvac VMS 253 are reduced to a level hard to beat, all being in favour of the end-user.

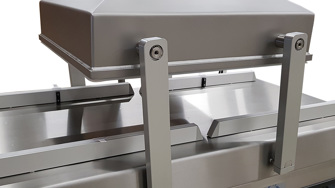

Robust and durable with a flat working plate
The Audionvac VMS 253 is made from heavy industrial materials which gives it a strong and professional look and feel. Standard richly equipped with:
- Time control
- Soft air to vacuum seal sharp products
- 63 m3/h vacuum pump
- Double seal (2 convex sealing wires)
- Standard 2 seal bars front and back which doubles your packing capacity
- 10 program memory
- Maintenance friendly and easy to clean construction
- Insert plates included for a faster cycle and product adjustment
- 3 year warranty
- Stainless steel
Benefits
The Audionvac VMS 253 gives you the following benefits
- Maximum efficiency:
- Standard 2 seal bars for optimized output.
- Optimum hygiene:
- Standard double seal (2 wires); convex sealing wires for safer sealing results.
- Time control:
- To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
- Soft air:
- To pack fragile or sharp products without damaging the products and the bag.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
- 10 program memory:
- Quick selection of the correct program for your products.
- Ease of use:
- User friendly digital control panel, plug and play.
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
- Vacuum pump:
- 63 m3/h vacuum pump for a fast packaging cycle.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; Silicone holders are easily removable for cleaning and maintenance.
- Flat working plate:
- Stainless steel, for optimized cleaning and hygiene.
- Construction:
- High quality material, maintenance friendly and easy to clean construction.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VMS 253
- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- 1-2 cut-off seal:
- Same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
- Wide seal:
- 10 mm flat seal for a more aesthetic and professional sealing result.
- Bi-active seal:
- Recommend to use when vacuum sealing aluminum or thicker bags. The vacuum bag is being sealed from both sides of the bag.
- Gas flush:
- Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- Aluminum end blocks:
- For heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Liquid control:
- The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
- Inclined plate:
- The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
- Number of gas nozzles:
- Per sealing bar - front/back (4/4).
- Alternative power supply:
- 230V-1P-50Hz | 220V-1P-60Hz | 200V-3P-50/60Hz | 220V-3P-60Hz
Spare parts
Discover the available spare parts for your VMS 253. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VMS 253
Specifications
More specifications of the Audionvac VMS 253
- Seal bar front-back:
- 620 / 620 mm
- Seal width:
- 2 x 3,5 mm double seal (convex sealing wires)
- Effective chamber size (LxWxH):
- (2x) 400 x 620 x 240 mm
- Pump capacity:
- 63 m3/h
- Machine cycle:
- 15 – 40 sec
- Chamber material:
- Stainless steel lid and chamber
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 400V-3P-50Hz (standard)
- Power consumption:
- 2,1 - 3,0 kW
- Weight:
- 310 kg
- Machine dimensions (LxWxH):
- 820 x 1490 x 1100 mm
Explore our options
Customize your Audionvac VMS 253 to your needs
Cut-off or 1-2 cut off seal
Cut-off seal, to easily tear off the residual film for optimized hygiene.1-2 Cut off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
Sensor control
Vacuum packaging machines equipped with Sensor control calculate when the pre-set percentage has been achieved. This guarantees a constant end vacuum of your package. Always. Especially recommended when packing various types of products with different volume.
Bi-active seal
Bi-active seal is used when vacuum sealing aluminium or thicker bags. This seal system has seal bars on both the inside of the lid and on the front of the vacuum chambers, so the vacuum bag is being sealed from both sides of the bag.
Heavy duty packing
Aluminum end blocks ensure an efficient and durable vacuum packaging process under the most extreme conditions.
Gas flush
Injecting a gas before the sealing phase increases the product's shelf life, it offers extra protection and it prevents the product from colouring.
Wide seal
10 mm wide seal for an aesthetic and professional result.
