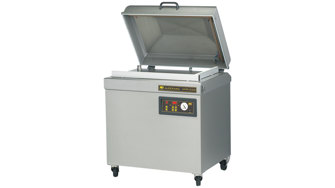

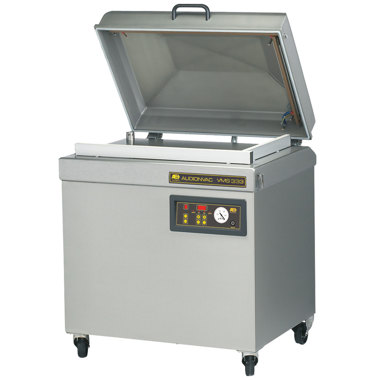

Audionvac VMS 333
Industrial single chamber vacuum machine with flat plate and powerful 100 m3/h vacuum pump
Interested in our Audionvac VMS 333?
We are more than willing to support you with your request or run a demo with your packaging
Inspiring vacuum technology
The VMS 333 is a versatile single chamber vacuum packaging machine with five different sealing bar configurations, mobility and heavy duty usage. It is ideal for the packaging of several pouches per cycle of large sized products. The advanced control system has 10 program memory settings.
The single chamber vacuum sealer is fully industrial grade stainless steel constructed, ideal for food, medical, electronics and industrial applications. It has flatten bed for hassle-free chamber wash down.
If you are looking for a strong industrial floor model vacuum packaging machine, fully customized to your product needs the Audionvac VMS 333 is the choice.
To sum up:
- Fully customizable
- Improved ergonomics
- Optimal production output (due to multiple seal bars)
- Guaranteed operational safety
- 100 m3/h vacuum pump
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Get the best packing result
The final packaging result is one of the most important factors in the vacuuming cycle. You would like to have you product safe, prolonging the product’s shelf life, saving space for storage and shipping and well-presented at your end-user. We understand this! Soft-air, sensor control, gas flush, filler plates, vacuum & gas speed regulation, liquid control etc. can all be built-in to guarantee the best packing result.
Cost-effectiveness and efficiency
The clever design in combination with the high quality materials makes the Audionvac VMS 333 a robust and durable vacuum chamber. The high level of flexibility and durable double seal garantee an efficient and high quality packing
Ease of operation
When designing the Audionvac VMS 333 we placed our users at the centre of everything. This resulted into a professional vacuum machine, industrial grade but with an ease of installation and operation. Operators don’t need an extended training as the machine and the way the software is being built up speaks for itself – plug and play. Noise level and energy consumption of the Audionvac VMS 333 are reduced to a level hard to beat, all in favour of the end-user.
Double or even triple your capacity
The Audionvac enables you to optimize your vacuum packaging operations by offering the possibility to customize your VMS 333 vacuum packaging machine to your specific requirements. Up to five different sealbar configurations are possible on the Audionvac VMS 333. Through this you reach the highest output and get the most out of this vacuum packaging machine.
Always an optimal production cycle
The VMS 333 is a powerful industrial vacuum packaging machine. Richly equipped as standard to guarantee you optimal production cycle. All together a rock solid machine which gives you benefits for years.
For instance:
- Time controlled vacuum process (optional sensor controlled)
- Soft air to vacuum seal sharp products
- 100 m3/h vacuum pump
- 2 seal bars for optimized output
- Double seal (2 convex sealing wires)
- Maintenance friendly and easy to clean construction
- Digital control panel with 10 program memory
- Insert plates included for a faster cycle and product adjustment
- 3 years warranty
Benefits
The Audionvac VMS 333 gives you as end-user the following benefits.
- Maximum efficiency:
- Standard 2 seal bars for optimized output, different seal bar configurations possible.
- Optimum hygiene:
- Standard double seal (2 wires); convex sealing wires for safer sealing results.
- Time control:
- To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
- Soft air:
- To pack fragile or sharp products without damaging the products and the bag.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
- 10 program memory:
- Quick selection of the correct program for your products.
- Ease of use:
- User friendly digital control panel, plug and play.
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
- Vacuum pump:
- 100 m3/h vacuum pump for a fast packaging cycle.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; Silicone holders are easily removable for cleaning and maintenance.
- Flat working plate:
- Stainless steel, for optimized cleaning and hygiene.
- Construction:
- High quality material, maintenance friendly and easy to clean construction.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VMS 333
- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- 1-2 cut-off seal:
- Same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
- Wide seal:
- 10 mm flat seal for a more aesthetic and professional sealing result.
- Bi-active seal:
- Recommend to use when vacuum sealing aluminum or thicker bags. The vacuum bag is being sealed from both sides of the bag.
- Aluminum end blocks:
- For heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Liquid control:
- The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
- Inclined plate:
- Enables liquid products to be placed in an angle to avoid the bag content from spilling.
- Gas flush:
- Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- Number of gas nozzles:
- Per sealing bar - front/right (4/3); left/right (3/3); front/back (4/4); left/front/right (3/4/3).
- External pump:
- Vacuum pump and vacuum chamber are separated from each other to avoid evaporation of particles by the vacuum pump in the same room. Used in cleanroom where small particles can affect the manufacturing and quality of a product or assembly.
- Validatable:
- For controlling process variables (pharma/medical products). Compatible with ISO 11607-2 validation requirements for sealing (bi-active seal option mandatory).
- Alternative power supply:
- 200V-3P-50/60Hz | 220V-3P-60Hz
Spare parts
Discover the available spare parts for your VMS 333. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VMS 333
Specifications
More specifications of the Audionvac VMS 333
- Seal bar front-right:
- 760 / 510 mm (standard)
- Seal bar front-back:
- 810 / 810 mm
- Seal bar left-right:
- 560 / 560 mm
- Seal bar left-front-right:
- 510 / 700 / 510 mm
- Seal width:
- 2 x 3,5 mm double seal (convex sealing wires)
- Effective chamber size (LxWxH):
- 510 x 760 x 200 mm (standard)
- Pump capacity:
- 100 m3/h
- Machine cycle:
- 15 – 40 sec
- Chamber material:
- Stainless steel lid and chamber
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 400V-3P-50Hz (standard)
- Power consumption:
- 2,2 – 2,7 kW
- Weight:
- 241 kg
- Machine dimensions (LxWxH):
- 830 x 900 x 1100 mm
Explore our options
Customize your Audionvac VMS 333 to your needs
Cut-off or 1-2 cut off seal
Cut-off seal, to easily tear off the residual film. 1-2 Cut off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
Sensor control
Vacuum packaging machines equipped with Sensor control calculate when the pre-set percentage has been achieved. This guarantees a constant end vacuum of your package. Always. Especially recommended when packing various types of products with different volume.
Heavy duty packing
Aluminum end blocks ensure an efficient and durable vacuum packaging process under the most extreme conditions.
Gas flush
Injecting a gas before the sealing phase increases the product's shelf life, it offers extra protection and it prevents the product from colouring.
Wide seal
10 mm wide seal gives an aesthetic and professional result.
Seal configurations
The Audionvac VMS 333 allows you to have different seal bar configurations to optimize your packaging process. For example; bi-active, 3 seal bars etc.
Let's have a chat
Do you want to know what the Audionvac VMS 333 can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most
