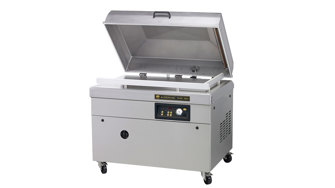

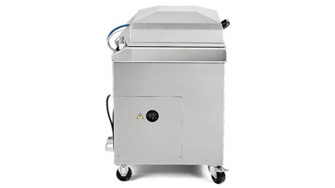

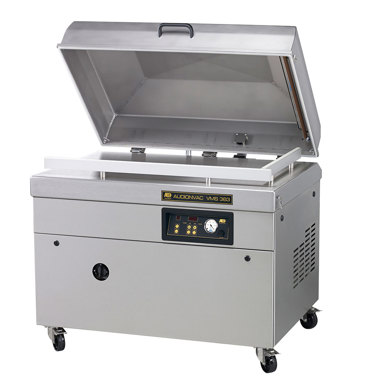

Audionvac VMS 363
The largest single chamber vacuum packaging machine with flat working plate and 160 m3 vacuum pump
Interested in our Audionvac VMS 363?
We are more than willing to support you with your request or run a demo with your packaging
For process optimization
The VMS 363 is the largest single chamber vacuum packaging machine with flat plate of the Audionvac range. With the 4 different seal bar configurations and a total sealing length of 1050 mm plus 620 mm it can’t go wrong.
This strong industrial floor model vacuum packaging machine is available as a basic industrial model and as a full option vacuum packaging machine.
This single chamber vacuum packaging machine is fully industrial grade stainless steel constructed, ideal for food, medical, electronics and industrial applications. It is equipped with a flat working plate for hassle-free chamber wash down.
All together a rock solid machine which gives you benefits for years.
To sum up:
- Extensive options possible, customized to your product
- Improved ergonomics
- Optimal production output (due to multiple seal bars)
- Guaranteed operational safety
- 160 m3/h vacuum pump
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
High level of packaging quality
The Audionvac VMS 363 ensures the best and safest packaging outcome for your product. You can easily process a wide variety of bag materials and products. Sharp or with an unusual shape the Audionvac VMS 363 makes it look easy.
Low maintenance costs and high life cycle
The Audion VMS 363 has a hygienic construction which ensures a quick cleaning. The materials used are from a high-grade facilitating heavy duty operation of the machine. Basic maintenance is sufficient, resulting in low maintenance costs and a high life cycle of the machine.
For maximum protection
The right seal solution protects products efficiently against external elements. The Audionvac offers several seal systems for your specific application. This depends on the type of vacuum bag (PA/PE, shrink bag, bags with aluminium coating), thickness of the bag, the desired seal and other requirements.
Reliable, durable and stainable
In today’s world, everyone relies on their products. It is crucial that equipment functions with highly efficient performance. When they fail to do so, it can lead to the customer being exasperated. Therefore Audion offers a warranty period of 3 years on the Audionvac VMS 363. Spare parts are easily and widely available. This guarantees a safe and reliable function of your product for now and for the future.
When more package throughput is required
Our Audionvac VMS 363 chamber machine features an extra-large chamber which is made from high quality materials with a stainless steel cover and flat working surface. The Audionvac VMS 363 is a machine with a clever design which will contribute for a long time to your production process. Standard supplied with:
- Time control
- Soft air to vacuum seal sharp products
- 160 m3/h vacuum pump
- Double seal (2 convex sealing wires)
- Maintenance friendly and easy to clean construction
- Digital control panel with 10 program memory
- Insert plates included for a faster cycle and product adjustment
- 3 years warranty
Benefits
The Audionvac VMS 363 gives you the following benefits
- Maximum efficiency:
- Standard 2 seal bars for optimized output, different seal bar configurations possible.
- Optimum hygiene:
- Standard double seal (2 wires); convex sealing wires for safer sealing results.
- Time control:
- To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
- Soft air:
- To pack fragile or sharp products without damaging the products and the bag.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
- 10 program memory:
- Quick selection of the correct program for your products.
- Ease of use:
- User friendly digital control panel, plug and play.
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Supplied with gas flush option.
- Vacuum pump:
- 160 m3/h vacuum pump for a fast packaging cycle.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; Silicone holders are easily removable for cleaning and maintenance.
- Flat working plate:
- Stainless steel, for optimized cleaning and hygiene.
- Construction:
- High quality material, maintenance friendly and easy to clean construction.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VMS 363
- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- 1-2 cut-off seal:
- Same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
- Wide seal:
- 10 mm flat seal for a more aesthetic and professional sealing result.
- Bi-active seal:
- Recommend to use when vacuum sealing aluminum or thicker bags. The vacuum bag is being sealed from both sides of the bag bi-active seal (two wires of 5 mm each)..
- Aluminum end blocks:
- For heavy duty packaging. Ensure an efficient and durable vacuum packaging process under the most extreme conditions.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Liquid control:
- The liquid control sensor detects the evaporation of the liquid product. The machine then stops extracting the air and proceeds automatically with the next phase, the sealing of the vacuum bag.
- Inclined plate:
- Enables liquid products to be placed in an angle to avoid the bag content from spilling.
- Gas flush:
- Enables Modified Atmosphere Packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- Number of gas nozzles:
- Per sealing bar - front/right (8/4); left/right (5/5); front/back (8/8).
- Larger pump:
- 300m3/h pump instead of 160 m3/h.
- Alternative power supply:
- 200V-3P-50/60Hz | 220V-3P-60Hz

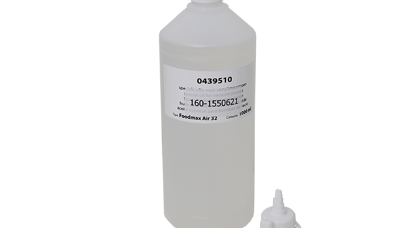

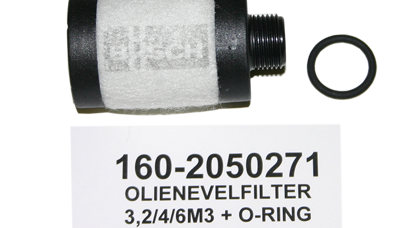

Spare parts
Discover the available spare parts for your VMS 363. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VMS 363
Specifications
More specifications of the Audionvac VMS 363
- Seal bar front-right:
- 1050 / 620 mm (standard)
- Seal bar front-back:
- 1100 / 1100 mm
- Seal bar left-right:
- 670 / 670 mm
- Seal bar left-front-right:
- 620 / 1000 / 620 mm
- Seal width:
- 2 x 3,5 mm double seal (convex sealing wires)
- Effective chamber size (LxWxH):
- 620 x 1050 x 280 mm (standard)
- Pump capacity:
- 160 m3/h
- Machine cycle:
- 15 – 40 sec
- Chamber material:
- Stainless steel lid and chamber
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 400V-3P-50Hz (standard)
- Power consumption:
- 2,3 - 5,6 kW
- Weight:
- 390 kg
- Machine dimensions (LxWxH):
- 947 x 1200 x 1150 mm
Explore our options
Customize your Audionvac VMS 363 to your needs
Cut-off or 1-2 cut off seal
Cut-off seal, to easily tear off the residual film for optimized hygiene. 1-2 Cut off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
Sensor control
Vacuum packaging machines equipped with Sensor control calculate when the pre-set percentage has been achieved. This guarantees a constant end vacuum of your package. Always. Especially recommended when packing various types of products with different volume.
Heavy duty packing
Aluminum end blocks ensure an efficient and durable vacuum packaging process under the most extreme conditions.
Gas flush
Injecting a gas before the sealing phase increases the product's shelf life, it offers extra protection and it prevents the product from colouring.
Seal configurations
The Audionvac VMS 363 allows you to have different seal bar configurations to optimize your packaging process. For example; bi-active, 3 seal bars etc.
Incline plates & Filling plates
The inclined plate creates an ideal product position, especially for liquids. Filling plates reduce the volume in the vacuum chamber resulting into a faster vacuum cycle.
