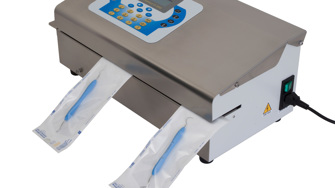

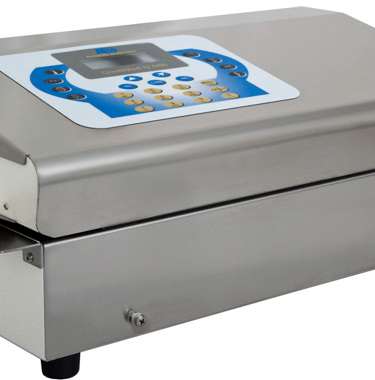

Contimed D 666 MPCV
Advanced validatable rotary sealer with integrated 9 dots matrix printer
Interested in our D 666 MPCV?
We are more than willing to support you with your request or run a demo with your packaging.
Validation, Traceability, Printing - all-in-one!
This validatable rotary heatsealer consistently seals multi-layered sterilization pouches like paper/PP, aluminium/PE, pre-formed sterile barrier systems and uncoated Tyvek® (not suitable for single plastic films like PE, PP). The 15 mm multiline seal is fully monitored and controlled on seal temperature, seal speed and seal force (alarm stop). Throughput 10 mtr/minute.
The integrated alarm-function operates with a temperature accuracy of ± 1%, compliant to sealing requirements of EN 868-5, DIN 58953-7.
The integrated 9 dots matrix printer provides the pouches with required production data like date, expiry, operator, batch code, seal temp, seal force, seal speed and pouch ID. Optionally an extra label printer can be connected, operating simultaneously. A USB port facilitates process data to be stored and processed.
The D 666 MPCV fully complies to the validation requirements of ISO 11607-2 and the corresponding guidelines ISO/TS 16775.
Its operation and simple set-up (through an easy-to-read digital display and membrane keypad) require only minimal operator training to pack any product safely, quickly and reliably.
To sum up:
- Validatable - Full control of all critical process parameters
- Integrated printer & USB-port
- Fast 10 mtr/min. throughput speed
- Ideal for both delicate and heavy-duty packaging operations
- Alarm stop - Tolerance +/-5°C
Benefits
The Contimed D 666 MPCV gives you as an end-user the following benefits:
- Validatable:
- Full control of all critical process parameters.
- Adjustable seal temperature:
- Seal temperature can be adjusted from 0 - 200°C (± 1% accuracy).
- Safety and quality controlled:
- Temperature alarm (temperature accuracy ± 1%), temperature tolerance +/-5°C, pressure alarm tolerance +/-20 N (default), speed alarm tolerance - 0,7 m/min. /+0,5 m/min. (default).

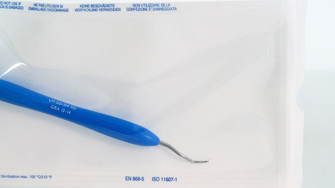

- Extra wide seal:
- Wide multiline seal (15 mm).
- Automatic alarm stop:
- The machine stops automatically when sealing parameters are out of tolerance range.
- Fast throughput speed:
- 10 meter/min.

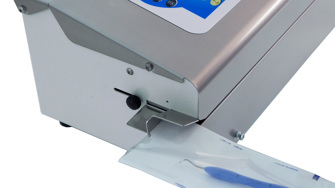

- Adjustable infeed guide:
- Free edge over the seal 0-30 mm.
- Integrated printer:
- 9 dot matrix (1 line).
- Wide connectivity:
- COM port RS 232 facilitates connection of extra label printer, bar code scanner or a PC.
- Interface:
- Integrated USB port and RS 232 port allow recording and export of critical process parameter data.
- HMI:
- LCD display (2 lines for 16 characters) with membrane keyboard and buzzer.
- Stainless steel top cover
- For hygienic cleaning.
- Compact design:
- Ideal for tabletop packaging applications.
- Easy-to-use
- Requires minimal operator training.
Options
The following options are available on the Contimed D 666 MPCV:
- Worktable:
- Provides bag support for heavier bags, facilitating a more efficient sealing process. Stainless steel, +/- 480 mm (OT D66 M).
- Rollertable:
- For supporting heavier products during sealing. Stainless steel, plastic rollers with bearings, +/- 800 mm. (RT D66M).
- Label Printer:
- Thermal transfer label printer (for batch info, operator data) (LP D66 M)
- Barcode Scanner:
- Securescan (including data upload software) (BCSC D66 M)
- (Re)-Calibration:
- Audion provides calibration services for our validatable sealers. The critical process parameters (seal temperature, seal force, seal time/speed, etc.) are measured with traceable measuring devices and a calibration certificate will be issued.
- IQ/OQ:
- The purpose of the Installation Qualification and Operational Qualification is to establish documented evidence that the packaging equipment is correctly installed, operates according to requirements, and performs safely.
Specifications
Please see below more specifications of the Contimed D 666 MPCV:
- Product:
- D 666 MPCV
- Type of machine:
- Band sealer, Semi automatic
- Model:
- Tabletop
- Seal width:
- 15 mm multiline seal
- Seal temperature:
- 0 - 200 °C (accuracy: +/- 1%)
- Seal temperature alarm:
- Setting range 0-200 °C; Tolerance +/-5°C; Accuracy +/-1%
- Throughput speed:
- 10 meter/minute (fixed)
- Seal speed tolerance:
- Min. 9.3 meter/min - Max. 10.5 meter/min
- Seal force:
- 100 N (default setting)
- Seal force tolerance:
- Min. 80 N - Max. 120 N
- Seal length:
- Unlimited
- Control panel:
- Membrane keyboard with keys and buzzer, LC display with 2 lines for 16 characters
- Communication interface:
- COM port RS232 / USB port
- Covering:
- Epoxy housing, stainless steel top cover
- Knife:
- No
- Type of film:
- Medical Pouches: paper/PP, Tyvek®, Paper bags (EN 868-4), alu laminate, PA/PE, PP (OPP/BOPP), no single PE!
- Thickness of film:
- 2 x 100 micron
- Compatibility:
- ISO 11607-2 / ISO/TS 16775 / EN 868-5 / DIN 58953-7
- Type of Package:
- Bag, Pouch
- Pedal operated:
- No
- Branche/Application:
- Life science (Pharmaceutical, Medical, Healthcare) | high-tech (parts/components)
- Weight:
- 20 kg
- Dimensions:
- 222 (H) x 554 (W) x 270 mm (D)
- Power supply:
- 115/230 V – 1 P – 50/60 Hz
- Power consumption:
- 600 W
- Acoustic emission level:
- <70 (dB(A)
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business.

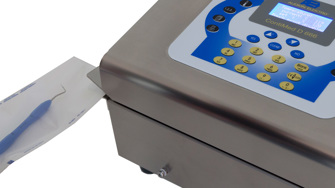

User-friendly interface
This model is operated by means of a user-friendly digital panel, enabling you to program the optimum packaging settings. This enables a consistent and reliable packaging result while saving production time and reducing product failure.
Traceability of sealing parameters
Control and monitor all process parameters, such as seal temperature, seal force and speed. All critical process parameters are recorded and can be exported to a USB-stick to diagnose any faults within the packaging process.
Production Consistency
The integrated alarm feature will inform you when the seal temperature is outside of tolerance (+/- 5°C). By having consistency on your production batches you remain assured of the best packaging quality that follow the set requirments of your field.

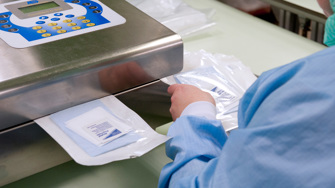

Cleanroom Compatible

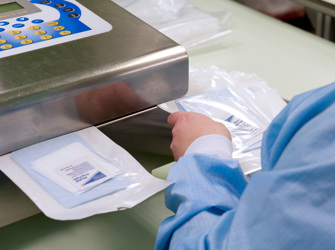

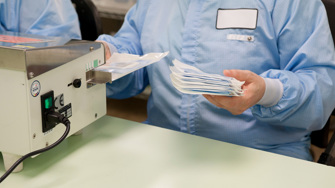

The validatable D 666 MPCV can be deployed in sterile environments and cleanrooms to perform consistent, reliable packaging productions. Its robust stainless steel housing is easy-to-clean including the digitial membrane control panel.
Videos

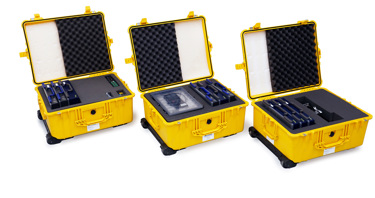

Calibration, Verification and Validation Services for our Sealers
The Audion validatable machine models require calibration, verification and validation services on a regular basis. Audion offers a wide range of instruments and solutions that enable users to test and verify their packaging machines and seals, in order to meet the high market demands. These include:
- Seal Integrity Test (SIT) as a service which includes seal check, dye penetration test and peel test
- Calibration as a service (incl. Calibration Certificate) certifies the preciseness of the sealing parameters of the packaging machine
- Validation documents:
-
- Installation Qualification (IQ) ensures that the machine is in good condition and functionality, and is calibrated
- Operational Qualification (OQ) optimizes the machine to create quality seals with customers packaging materials
Explore our options
Other related solutions to fit your needs:
Work Table
The optional stainless steel work table improves the efficiency of your packaging process. The work table will guide your pouch from start to finish and guarantees the product will be sealed in a straight line. Heavier products can benefit more from the optional roller table

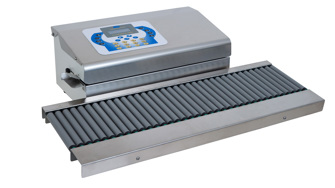

Roller Table
Heavier products that cause excessive tension on the seal due to dragging and require more guidance during the sealing process can add a convenient optional roller table. A straight seal is guaranteed and the operator keeps the hands free for feeding the next product.
Audion Factory Calibration
Audion provides professional calibration services for our validatable sealers. The critical process parameters (seal temperature, seal force, seal time, cooling temperature) are measured with traceable measuring devices and a calibration certificate will be issued.
IQ/OQ
Installation qualification (IQ) and Operational qualification (OQ) scripts are mandatory within the pharma/medical industry due to the high-quality sealing demands. Our team of experts will conduct multiple tests with different scenarios with your pouches to determine that our machine complies to the necessary packaging demands.
Related products
Contimed D 662 MV
Rotary medical sealer with complete control of sealing parameters
- Validatable: Yes
- Seal width: 12,5 mm multiline
- Throughput: 8 meter/minute (fixed)
- Control panel: LCD, 2 lines, membrane keyboard
- Interface: USB port
- Integrated printer: No
- Conveyor belt: Optional
Contimed D 775 MPCV
Advanced medical rotary sealer with integrated 2 line printer, optimized connectivity
- Validatable: Yes
- Seal width: 15 mm multiline seal
- Throughput: 3 to 13 meter/minute (adjustable)
- Control panel: Touchscreen, 24 seal recipe memory
- Interface: 3x USB /2x RS232 /1xEthernet/1x PS2/1xVGA
- Integrated printer: 18 dots matrix, 2 lines
- Conveyor belt: No
Contimed D 660 V
Validatable compact stainless steel rotary sealer suitable for sealing single layer PE or PP
- Validatable: Yes
- Seal width: 9 mm high profile knurled seal
- Throughput: 8 meter/minute (fixed)
- Control panel: LCD, 2 lines, membrane keyboard
- Interface: USB port, RS-232 port
- Integrated printer: No
- Conveyor belt: Optional
