Form Fill and Seal

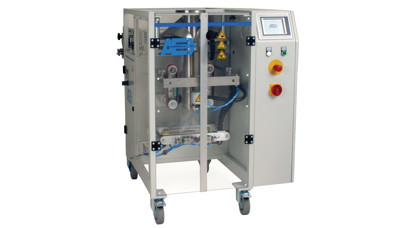

AVM 190

Compact vertical form fill and seal machine producing bags from flat film at high speed

1. Type of machine: Floor standing
2. Seal length (min-max): 50-190 mm (mag width); 50-300 mm (bag length)
3. Type of film: Flat film
4. Cycling speed: up to 100 bags/min
5. Bag length (min-max): 50-300 mm
6. Powered: Pneumatic air

Conveyor ATBI

Audion intermittent discharge conveyor belt

1. Type of machine: Conveyor belt
2. Type of belt: Blue belt + dividers (food grade)
3. Adjustable inclination: Yes, max 900 mm
4. Side guidance: Yes, optional
5. Conveyor speed Adjustable from 8 m/min to 22 m/min

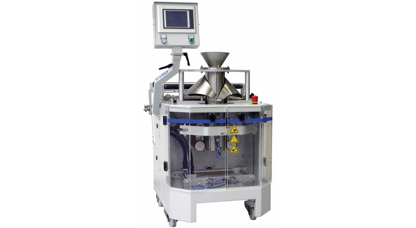

AVM 200 Paper

The most compact vertical bagger creating small paper bags

1. Type of machine: Floor standing
2. Bag width 50 - 200 mm
3. Type of film: Flat paper
4. Cycling speed: Up to 40 bags/min
5. Bag length (min-max): 50-200 mm
6. Powered: Pneumatic air

Optimizer with conveyor system

Convenient sorting table combined with an infeed conveyor fitted with deviders

1. Type of machine: Sorting table and conveyor belt with divider sections
2. Counting feature: Yes, photo cell function that counts filled sections only
3. Automatic start: Yes, per section or after counting a preset number of sections
4. With fixed funnel: Max. speed: 10 cycles per minute
5. With accumulated funnel: Max. 15 cycles per minute
6. With highspeed machine and accumulated funnel: Max. 30 cycles per minute

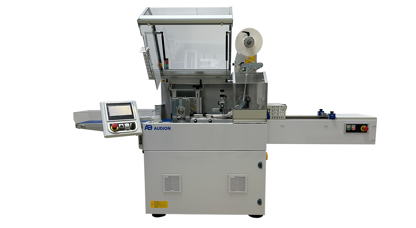

300 AHM E

Entry-level horizontal flow packaging for small-scale environments

1. Type of machine: Floor standing
2. Max. product height: 60 mm
3. Cross seal bar length: 150 mm
4. Type of film: PP/BOPP/Laminates (PE not possible)
5. Cycling speed: Max. 90 products / minute
6. Air pressure required: No
