Power Sealer TC XL

The Power Sealer TC XL is designed for making long and temperature controlled hermetic seals

Interested in our Power Sealer TC XL?

International Sales

We are more than willing to support you with your request or run a demo with your packaging

Lifescience Brochure

Creating long high quality temperature controlled seals

Power Sealer TC XL is a temperature controlled impulse sealer and has been designed following the critical packaging needs in High-tec and Food industry where temperature controlled sealing and a process alarm on seal temperature is required. The integrated temperature controller ensures that every seal is made at the same temperature, creating the same reliable seal result, even during intensive operation.

The heavy duty construction and high performance bi-active seal bars produce a straight and secure 8 mm seal up to a length of 2500 mm without any concession to seal integrity. Ideal for protecting your largest products with protective film covers to ensure a safe and secure storage or transport within the supply chain.

This pneumatically operated packaging solution can seal most modern film types like PE, aluminum laminated and antistatic film types up to 400 micron.



The optional vacuum system (standard equipped with a powerful and almost maintenance-free 20m3 Venturi pump) is ideal for applications requiring vacuum or modified atmosphere packaging (MAP) of bulk products. This also enables you to minimize the package size and transport/storage costs and to optimally preserve and prolong the quality of your products.

Benefits:

  • Well suited for sealing extra long film lengths of custom bags and protective coverings
  • Large seal opening (45 mm)
  • Temperature controlled sealing ensuring consistent seal results
  • Parameter monitoring on seal temperature (alarm stop)
  • Audion Touch Techware integrated: to set up to 50 recipes for each different product /film combination
  • Excellent Audion services available for maintenance and spare parts.

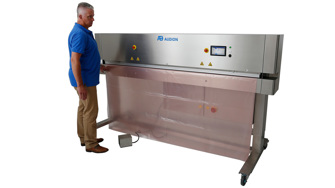

PSR XL Antistatische Folie Dicht

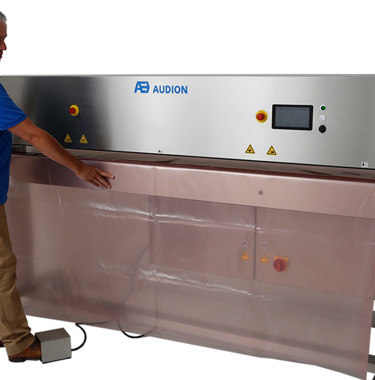

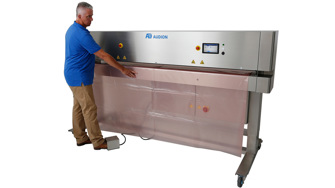

PSR XL Antistatische Folie Open

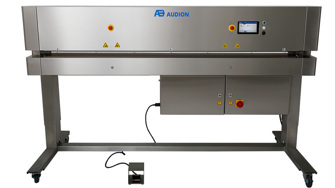

PSR XL Front

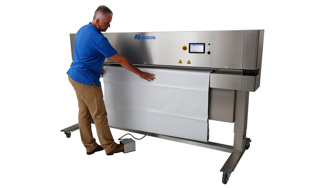

PSR XL Laminaat Sealen

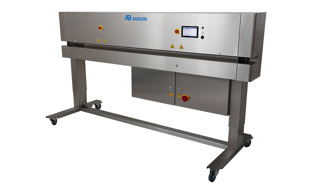

PSR XL Side

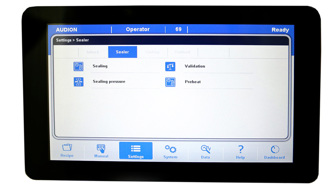

Paneel PSR XL

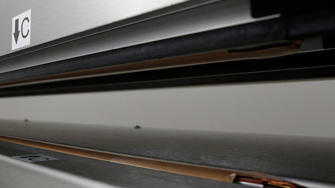

Bi Actieve Sealbalken PSR XL
PSR XL Antistatische Folie Dicht
PSR XL Antistatische Folie Open
PSR XL Front
PSR XL Laminaat Sealen
PSR XL Side
Paneel PSR XL
Bi Actieve Sealbalken PSR XL

This makes your machine unique

We work together with you in providing the best quality packaging machines to help you grow your business

Guaranteed ultimate seal integrity

Extra long bi-active sealbars produce a consistent 8 mm seal over the entire lenght of up to 2500 mm.

Robust and user-friendly by design

Special heavy-duty construction to facilitate intensive use and ultimate performance and reliability.

Uniquely embedded technologies

When combined with validation option, sealing temperature, sealing time and seal force can be controlled, monitored and recorded, realizing a seal integrity of 100%.

Minimizes transport costs and storage space

Extra powerful Venturi pump integrated within the optional vacuum system creating a perfectly fitted protection for your product(s) and reduces the package size.

Video's Power Sealer TC XL

PSR XL Tekstimage

An integrated vacuum and/or gas flush system

The PSR TC XL can be configured for "sealing only" or with an integrated vacuum system.

The Audion Vacuum Power Sealer TC XL is equipped with a 20m3 Venturi pump and extra wide vacuum nozzle enabling a powerful vacuum result, ideal for operating in a continuous packaging process, reducing production time. The pump is virtually maintenance free (operating without oil).

The vacuum system can be combined with gas flush to create modified atmosphere packaging (MAP). The gas flush system ensures safe and quality-controlled packaging of all kinds of products, enabling extended shelf life of food and non-food products and actively prevents the change of metals oxidizing of e.g. electric equipment and devices.

An integrated vacuum system can be used for:

  • Volume reduction of the package to save storage and shipment costs
  • Applying a modified atmosphere (MAP) to extend the shelf-life of food products
  • Prevention of oxidation of, for example, electrical appliances and metal parts
Videos of PSR TC XL

Benefits

The Audion Power Sealer TC XL gives you the following benefits

Food Brochure
Powerful 8 mm seal:
Suitable for sealing most modern film like PE, anti-static film (to make reliable (extra large) bags and sleeves).
Excellent seal integrity:
The pneumatic bi-active sealing bars produce a powerful and evenly distributed seal pressure at each sealing cycle to ensure a hermetic seal, even during repetitive use.
Protected seal cycle:
No errors can be tolerated. Therefore an integrated 3 level log-in (operator, supervisor and administrator protected seal cycles) comes standard in the Power Sealer TC XL.
Optimized output:
Large lengths of film can be efficiently sealed at once, reducing production time and providing a representative and reliable protection of your products.
Parameter monitoring:
On seal temperature (alarm stop)

Everything-under-one-roof, match the Power Sealer TC XL with Audion film

Click here

Explore our options

Customize your Power Sealer TC XL to your needs

Optimized Vacuum / Gasflush process

Integration of a venturi vacuum system will enable you to reduce voluminous packaging or extend the shelf life of food or erosion-sensitive products.

Extra seal comfort

A convenient work table supports the weight of longer (slim) objects, leaving the operator's hands free to guide the film straight between the seal bars.

Ultimate hygiene & visual presentation

A pneumatic cutting device is recommendable to minimize dirt or dust inside the bag opening. The residual film above the seal will be cut in this way, creating a nice, clean and straight appearance.

0D770544 0733 4B3d 9A1c 07Ed7c097157

Discover our Power Sealer line:

  1. Power Sealer

This no-nonsense Power Sealer forms the solid basis of the renowned Power Sealer line. The outstanding 5 mm sealing performance is achieved by a pneumatic bi-active and time-controlled impulse sealing system. Standard vacuum feature integrated.

  1. Validatable Power Sealer

This model is validatable and generates an 8 mm temperature- and time controlled seal. The validation enables that critical seal variables like seal force, seal temperature and seal time are being controlled.

The Power Sealer TC is a high-performance temperature controlled sealing machine designed for demanding packaging needs in the high-tech and food industries. It features a durable stainless steel housing, touchscreen interface, and powerful bi-active and pneumatic seal bars that ensure consistent, airtight seals.

  1. Power Sealer PLUS

The next step in the Power Sealer line is the Plus version. With its unique and most precise system of validation it meets todays' most stringent packaging requirements. 8 mm Temperature- , time- and force controlled seal. Includes Audion Touch Techware.

  1. Power Sealer PLUS IP65

Our flagship model in the Power Sealer line. Especially designed for dusty, humid or regulated (clean room) production environments. Highly advanced validatable impulse sealer. An 8 mm temperature-, time and force controlled seal. Includes Audion Touch Techware. Also available in Bag-in-box configuration.

The Power Sealer TC XL and Power Sealer PLUS XL have the largest sealing length of the Audion Power Sealer range. With a sealing length of 2500 mm they can effortlessly provide your largest products with customized packaging or protective covers by means of an 8 mm seal. Available in a temperature controlled model (PSR TC XL) and a validatable model (PSR PLUS XL) with validation on temperature-, time- and seal force controlled sealing.

Unique steamsealer enabling bags to be sealed without electrical power supply. Instead, it uses pressurized steam to operate. suitable for explosive environments. 8 mm temperature controlled seal.

Industrial bag sealer videos
Combi Probeersel

Let's have a chat

Do you want to know what the Audion Power Sealer XL can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most.

Webshop products
International Sales

International Sales
Audion

Related products

Power Sealer PLUS XL

Power Sealer PLUS XL

High-end extra large industrial impulse sealer with validation feature

  1. Seal width: 8 mm
  2. Seal length: 2500 mm
  3. Type of seal: Temperature-, time- and pressure controlled impulse seal (for PLUS serie)
  4. Powered: Pneumatic (air)
  5. Operating: Touchscreen /50 pre-set recipes
  6. Validatable: Yes
  7. Vacuum & gas flush system: Yes, optional
  8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
  9. Accuracy: ++++
View product
Vacuum Power Sealer PLUS IP65 Bag-in-box

Vacuum Power Sealer PLUS IP65 Bag-in-box

For bag-in-box packaging operations that require complete quality control, high sanitation and excellence in vacuum results

  1. Seal width: 8 mm
  2. Seal length: 1720 mm
  3. Type of seal: Temperature-, time-, and pressure controlled impulse seal
  4. Powered: Pneumatic (air)
  5. Operating: Touchscreen /50 pre-set recipes
  6. Validatable: Yes
  7. Vacuum & gas flush system: Yes, standard
  8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
  9. Accuracy: ++++
View product
Power Sealer Temperature Controlled

Power Sealer Temperature Controlled

Advanced industrial impulse sealer with integrated Audion Temperature Controller designed for high-tec and food industry

  1. Seal width: 8 mm
  2. Seal length: 520 | 720 | 1020 mm
  3. Type of seal: Temperature and time controlled impulse seal
  4. Powered: Pneumatic (air)
  5. Operating: Audion Touch Techware / 50 recipes
  6. Validatable: Calibration possible at temperature value
  7. Vacuum & gas flush system: Yes, optional
  8. Compatible with: Compatible with EN 60204-1 and fully complies to ISO 12100, ISO 4414 and ISO 14118.
  9. Accuracy: +++
View product
Power Sealer PLUS

Power Sealer PLUS

High-end industrial validatable impulse sealer designed for most critical and heavy duty packaging applications

  1. Seal width: 8 mm
  2. Seal length: 520 | 720 | 1020 | 1320 mm
  3. Type of seal: Temperature-, time- and pressure controlled impulse seal
  4. Powered: Pneumatic (air)
  5. Operating: Touchscreen /50 pre-set recipes
  6. Validatable: Yes
  7. Vacuum & gas flush system: Yes, optional
  8. Compatible with: EN 868-5 | DIN 58953 | part 7 norms | ISO 11607-2 | ISO/TS 16775
  9. Accuracy: ++++
View product
