Validatable packing

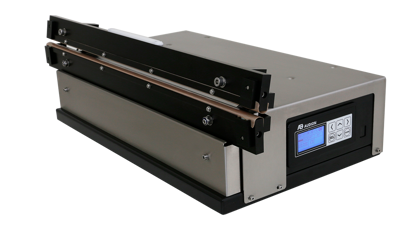

MEDSEAL® - MSIDV

Electrically driven medical industrial validatable impulse sealer

1. Seal width: 8 mm
2. Seal length: 460 | 610 mm
3. Type of seal: Temperature-, time- and pressure controlled impulse seal
4. Powered: Electric
5. Operation: Digital control panel / 1 pre-set seal recipe
6. Validatable: Yes
7. Vacuum & gas flush system: No
8. Compatible with: EN868-5, section 4.3.2. and DIN 58953 part 7 and ISO 11607-1
9. Accuracy: ++

Power Sealer validatable

Powerful industrial validatable impulse sealer

1. Seal width: 8 mm
2. Seal length: 520 | 720 | 1020 mm
3. Type of seal: Temperature-, time- and pressure controlled impulse seal
4. Powered: Pneumatic (air)
5. Operating: Digital control panel /1 pre-set recipe
6. Validatable: Yes
7. Vacuum & gas flush system: Yes, optional
8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
9. Accuracy: +++

Power Sealer PLUS

High-end industrial validatable impulse sealer designed for most critical and heavy duty packaging applications

1. Seal width: 8 mm
2. Seal length: 520 | 720 | 1020 | 1320 mm
3. Type of seal: Temperature-, time- and pressure controlled impulse seal
4. Powered: Pneumatic (air)
5. Operating: Touchscreen /50 pre-set recipes
6. Validatable: Yes
7. Vacuum & gas flush system: Yes, optional
8. Compatible with: EN 868-5 | DIN 58953 | part 7 norms | ISO 11607-2 | ISO/TS 16775
9. Accuracy: ++++

Power Sealer Temperature Controlled

Advanced industrial impulse sealer with integrated Audion Temperature Controller designed for high-tec and food industry

1. Seal width: 8 mm
2. Seal length: 520 | 720 | 1020 mm
3. Type of seal: Temperature and time controlled impulse seal
4. Powered: Pneumatic (air)
5. Operating: Audion Touch Techware / 50 recipes
6. Validatable: Calibration possible at temperature value
7. Vacuum & gas flush system: Yes, optional
8. Compatible with: Compatible with EN 60204-1 and fully complies to ISO 12100, ISO 4414 and ISO 14118.
9. Accuracy: +++

Vacuum Power Sealer PLUS IP65 Bag-in-box

For bag-in-box packaging operations that require complete quality control, high sanitation and excellence in vacuum results

1. Seal width: 8 mm
2. Seal length: 1720 mm
3. Type of seal: Temperature-, time-, and pressure controlled impulse seal
4. Powered: Pneumatic (air)
5. Operating: Touchscreen /50 pre-set recipes
6. Validatable: Yes
7. Vacuum & gas flush system: Yes, standard
8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
9. Accuracy: ++++

Power Sealer PLUS IP65

High-end industrial validatable IP65 impulse sealer, designed for demanding packaging in dusty or humid environments

1. Seal width: 8 mm
2. Seal length: 720 | 1020 mm
3. Type of seal: Temperature-, time- and pressure controlled impulse seal
4. Powered: Pneumatic (air)
5. Operating: Touchscreen /50 pre-set recipes
6. Validatable: Yes
7. Vacuum & gas flush system: Yes, optional
8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
9. Accuracy: ++++

Power Sealer PLUS XL

High-end extra large industrial impulse sealer with validation feature

1. Seal width: 8 mm
2. Seal length: 2500 mm
3. Type of seal: Temperature-, time- and pressure controlled impulse seal (for PLUS serie)
4. Powered: Pneumatic (air)
5. Operating: Touchscreen /50 pre-set recipes
6. Validatable: Yes
7. Vacuum & gas flush system: Yes, optional
8. Compatible with: EN 868-5 / DIN 58953 / part 7 norms / ISO 11607-2 / ISO/TS 16775
9. Accuracy: ++++

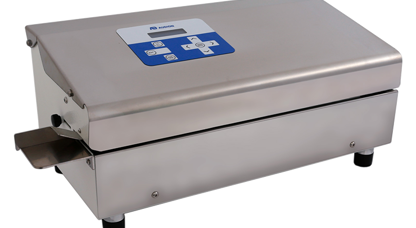

Contimed D 660 V

Validatable compact stainless steel rotary sealer suitable for sealing single layer PE or PP

1. Validatable: Yes
2. Seal width: 9 mm high profile knurled seal
3. Throughput: 8 meter/minute (fixed)
4. Control panel: LCD, 2 lines, membrane keyboard
5. Interface: USB port, RS-232 port
6. Integrated printer: No
7. Conveyor belt: Optional

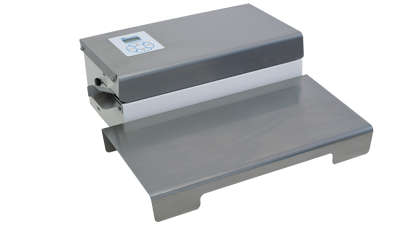

Contimed D 662 MV

Rotary medical sealer with complete control of sealing parameters

1. Validatable: Yes
2. Seal width: 12,5 mm multiline
3. Throughput: 8 meter/minute (fixed)
4. Control panel: LCD, 2 lines, membrane keyboard
5. Interface: USB port
6. Integrated printer: No
7. Conveyor belt: Optional

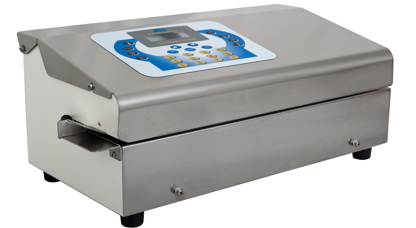

Contimed D 666 MPCV

Advanced medical rotary sealer with integrated printer, optimized traceability features

1. Validatable: Yes
2. Seal width: 15 mm multiline seal
3. Throughput: 10 meter/minute (fixed)
4. Control panel: 2 lines LCD, membrane keyboard
5. Interface: COM port RS232 / USB port
6. Integrated printer: 9 dots matrix, 1 line
7. Conveyor belt: No

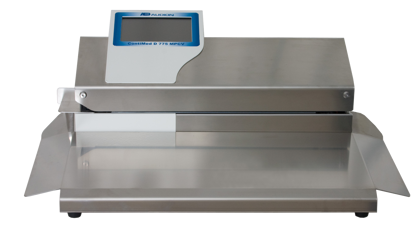

Contimed D 775 MPCV

Advanced medical rotary sealer with integrated 2 line printer, optimized connectivity

1. Validatable: Yes
2. Seal width: 15 mm multiline seal
3. Throughput: 3 to 13 meter/minute (adjustable)
4. Control panel: Touchscreen, 24 seal recipe memory
5. Interface: 3x USB /2x RS232 /1xEthernet/1x PS2/1xVGA
6. Integrated printer: 18 dots matrix, 2 lines
7. Conveyor belt: No

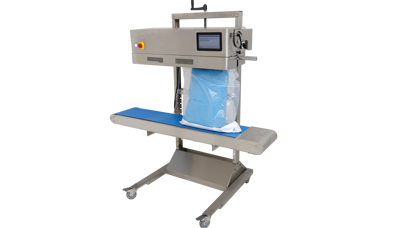

D 542 AVTSV Validatable Vertical Continuous Band Sealer

Validatable heavy-duty vertical band sealer for uncompromised seal integrity

1. Seal width: 10 mm cross-hatch seal
2. Throughput: Max. 10 meter per minute
3. Control panel: Audion Touch Techware Equipped with Audion Temperature Controller (ATC) + 7 inch touchscreen (ADC)
4. Integrated printer: Optional
5. Support stand: Yes
6. Conveyor belt: Yes
7. Max. weight on conveyor 10 kg

Speedpack 400 High Speed Medical

Validatable medical stainless steel bagger creating sterilization bags of any length at exceptional speed

1. Type of machine: Floor standing
2. Seal length: 50 – 400 mm
3. Type of film: Tubular film/ bags-on-roll
4. Cycle speed: up to 20 bags/min (tubular)
5. Bag length: 110 - 800 mm
6. Powered: Pneumatic air

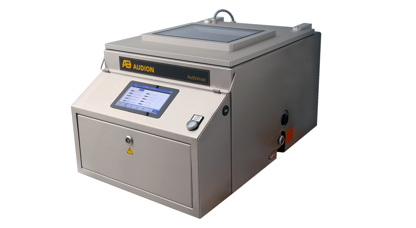

VMS 163B Validatable

Tabletop vacuum packaging machine

1. Pump capacity: 21 m3/h
2. Seal length: 420 mm (front)
3. Chamber size: 460 x 420 x 120 mm
4. Chamber type: Deep (stainless steel)
5. Housing: Stainless steel chamber and flat aluminum lid

VMS 333 Validatable

Validatable single chamber with a flat plate

1. Pump capacity: 100 m3/h
2. Seal length: 790 mm (front) + 475 mm (right)
3. Chamber size: 475x 790 x 200 mm
4. Chamber type: Flat (Stainless steel)
5. Housing: Stainless steel

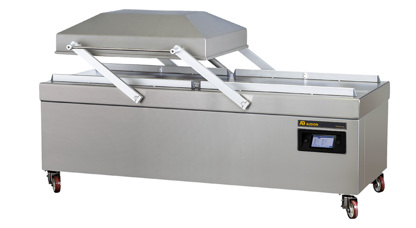

VMS 503 Validatable

Validatable double chamber with a flat plate

1. Pump capacity: 300 m3/h
2. Seal length: 1080 mm (front) + 1080 mm (back)
3. Chamber size: (2x) 730 x 1080 x 280 mm
4. Chamber type: Flat (stainless steel)
5. Housing: Stainless steel

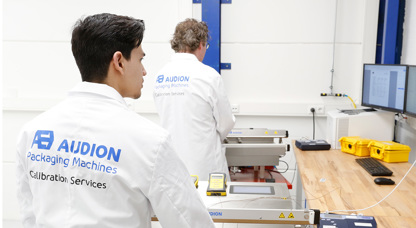

Calibration, Verification and Validation Services

Validatable: impulse sealers, rotary heat sealers, Speedpack Hybrid, validatable bandsealers and vacuum chambers

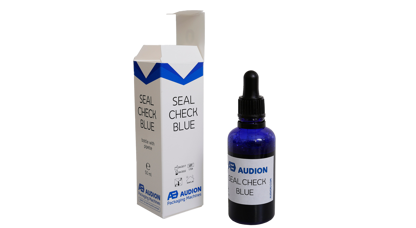

Seal Check Ink

Dye penetration test to check integrity of the seal.

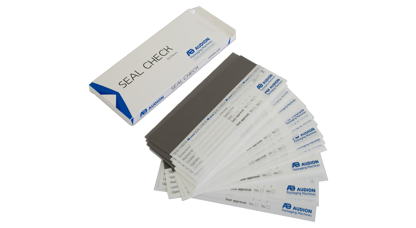

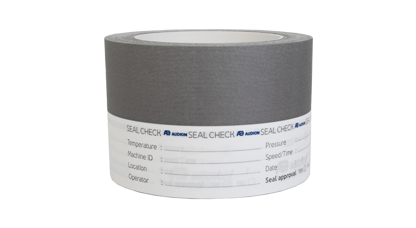

Seal Check Roll

Seal indicator material for routine checking of seal integrity

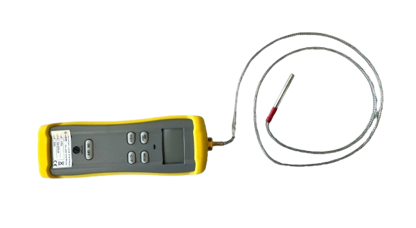

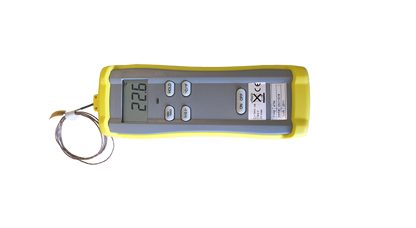

Audion Temperature Measurement

Device to verify the exact seal temperature

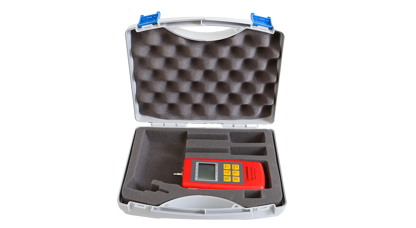

Audion Vacuum Level Measurement

Device to verify the vacuum level (in validatable vacuum chambers)

Audion Force Measurement Ring

Device to verify the sealforce on Power Sealer, MSIDV

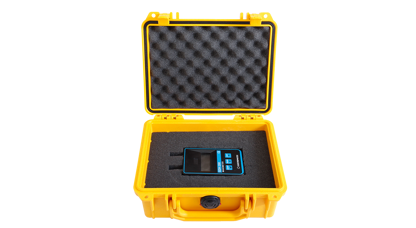

Audion Seal Pressure Measurement

Device to verify the seal pressure of sealers not having a loadcell (Validatable Audionvac, Speedpack)
