Audionvac

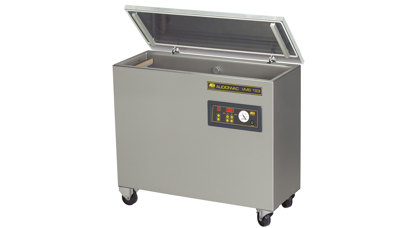

Audionvac VMS 193

Extra wide vacuum chamber for longer products, equipped with 2 seal bars and flat lid. Fullly customizable, configurable seal bars.

1. Pump capacity: 63 m3/h
2. Seal length: 320 mm (left) + 320 mm (right)
3. Chamber size: 320 x 890 x 100 mm
4. Chamber type: Deep
5. Chamber material: Stainless steel

Audionvac VMS 223

Single deep chamber vacuum machine with 2 seal bars and high lid for maximum production output. Fully customizable.

1. Pump capacity: 63 m3 /h
2. Seal length: 520 mm (left) + 520 mm (right)
3. Chamber size: 520 x 500 x 200 mm
4. Chamber type: Deep
5. Chamber material: Stainless steel

Audionvac VMS 233

Single vacuum chamber with flat working plate for hygienic cleaning, extensive option possibilities

1. Pump capacity: 63 m3/h
2. Seal length: 520 mm (left) + 520 mm (right)
3. Chamber size: 520 x 500 x 200 mm
4. Chamber type: Flat
5. Chamber material: Stainless steel

Audionvac VMS 333

Single vacuum chamber with extensive options and various seal bar configurations. Also configurable as cleanroom version.

1. Pump capacity: 100 m3/h
2. Seal length: 760 mm (front) + 510 mm (right)
3. Chamber size: 510 x 760 x 200 mm
4. Chamber type: Flat
5. Chamber material: Stainless steel

Audionvac VMS 363

Single vacuum chamber with flat working plate for maximum hygiene. Extensive options and various seal bar configurations

1. Pump capacity: 160 m3/h
2. Seal length: 1050 mm (front) + 620 mm (right)
3. Chamber size: 620 x 1050 x 280 mm
4. Chamber type: Flat
5. Chamber material: Stainless steel

Audionvac VM 203

Single chamber vacuum machine with aluminum chamber, monitoring window, 10 program digital control and optional ESD

1. Pump capacity: 63 m3/h
2. Seal length: 520 mm (left) + 520 mm (right)
3. Chamber size: 520 x 500 x 235 mm
4. Chamber type: Deep
5. Chamber material: Aluminum

Audionvac VM 303

Powerful single chamber vacuum machine with aluminum chamber, monitoring window, multiple seal bar options and optional ESD

1. Pump capacity: 100 m3/h
2. Seal length: 760 mm (front) + 510 mm (right)
3. Chamber size: 510 x 760 x 235 mm
4. Chamber type: Deep
5. Chamber material: Aluminum

VMS 333 Validatable

Validatable single chamber with a flat plate

1. Pump capacity: 100 m3/h
2. Seal length: 790 mm (front) + 475 mm (right)
3. Chamber size: 475x 790 x 200 mm
4. Chamber type: Flat (Stainless steel)
5. Housing: Stainless steel
