Vacuum packaging with a dip tank
Audionvac vacuum chamber machine in combination with a dip tank to shrink pack the film tightly around the product.
Watch video
VDT 5060 diptank
The dip tank of Audion offers protection and boosts your product presentation, usable space 500x600x220 mm
Interested in our VDT 5060 dip tank?
We are more than willing to support you with your request or run a demo with your packaging
For a professional presentation

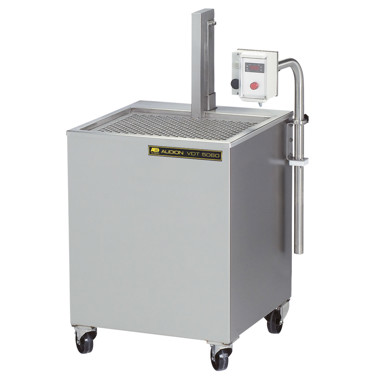

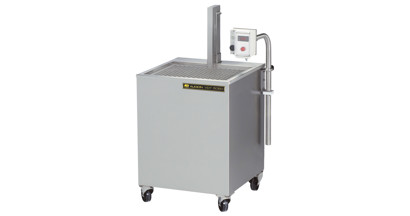

Our diptank; the Audionvac VDT 5060 is a stainless steel shrink diptank designed to provide high quality contoured retail packaging for meat, poultry, cheese, and other perishable food products.
The Audionvac VDT 5060 eliminates dog ears and excessive wrinkles around food products that have been vacuum packaged in shrink bags.
Audion has two different sizes of diptanks in their productrange the:
- VDT 5060
- VDT 6080
Both dip tank machines are made from high quality stainless steel and are plug and play. The VDT 5060 is for small/medium sized companies the VDT 6080 has a larger capacity.
To sum up:
- Improves protection
- Improves product presentation
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Easy cleaning
Nobody wants to spend unnecessarily time on cleaning. Therefor Audion made it easy for you. We have installed an easy to use drain tap on the side of the Audion VDT 5060 diptank. Makes cleaning easier and more pleasant.
Green footprint
Audion designed and built the VDT 5060 as environmentally friendly as possible. Not only materials inorder to prodcue have been taken in account but also minimize the power consumption when in use. High quality isolation for contant temperature distribution and special designed fully insulated balls to avoid heat loss / against evaporation.
Piece of cake
No complicate tasks need to be done with the Audion VDT 5060 diptank in order to create a second skin product presentation. The standard installed hydraulic drive and digital time control makes sure that each packaging cycle is a success.
Short preheating time
Audionvac uses only high quality materials for their products also for the heating elements used in the VDT 5060. These new powerful heating elements reduces the preheating time and makes the VDT 5060 quicker to be ready for use than its competitors.
Videos
Cheese Packaging

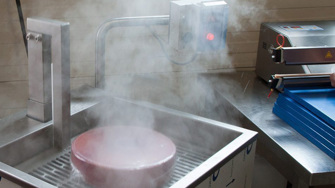

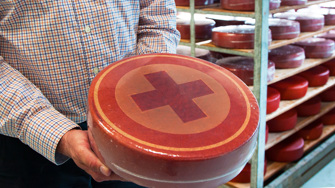

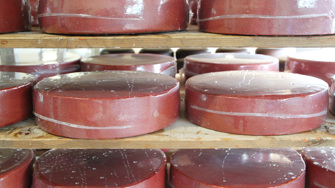

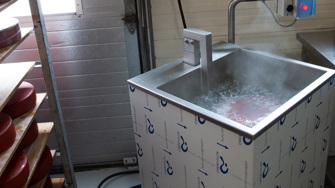

Packing cheese with an Audion Power Sealer in combination with a dip tank.
Watch video
Perfect combination for your chamber vacuum machine

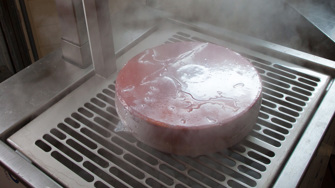

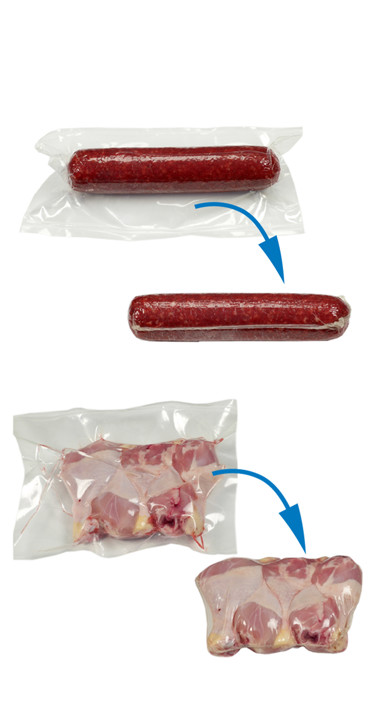

After vacuum packaging, the product is placed into the dip tank, with hot water filled, for a few seconds. During this bath, the special vacuum shrink film will retract the plastic surplus film around the product. Resulting in a better looking packaging, as well as a reduced packaging volume.
Standard supplied with:
- Made from High quality stainless steel
- Plug and play
- Automatic shelf to place your product on which moves up and down dipping your product into the heated water.
- Digital control panel
- Digital time control
- Easy access for cleaning and maintenance
- Automatic water level control
- Built in lime scale protection
Benefits
The Audion VDT 5060 gives you the following benefits
- Construction:
- Made from High quality stainless steel.
- Installation:
- Plug and play.
- Shelf:
- Automatic shelf to place your product on which moves up and down dipping your product into the heated water.
- Control panel:
- Digital control panel.
- Easy cleaning:
- Drain tap on the side to drain the machine for easy cleaning.
- Isolation balls:
- Special designed fully insulated balls to avoid heat loss / against evaporation of the water inside the VDT 5060 diptank.
- Time control:
- Accurate digital time control.
- Water level control:
- Automatic.
- Protection:
- Built in lime scale protection.
Options
The following options are available on the Audionvac VDT 5060
- Audionvac:
- Use the Audion Diptank in combination with one of our vacuum packaging machines from the Audionvac range for the best packaging result.
- Isolation balls:
- Special designed fully insulated balls to avoid heat loss / against evaporation of the water inside the VDT 6080 diptank.
Specifications
More specifications of the Audioncav VDT 5060
- Model:
- Floor
- Covering:
- Stainless Steel
- Knife:
- Option
- Type of film:
- Vacuum Shrink Bags
- Thickness of film:
- 2 x 100 micron
- Usable space:
- 500 x 600 x 220 mm
- Machine cycle:
- 3 – 5 sec
- Dipping depth:
- 220 mm
- Chamber dimensions:
- 500 x 600 x 220 mm
- Maximal loading capacity:
- 60 kg
- Voltage:
- 400V-3-50Hz
- Power:
- 15,0 kW
- Weight:
- 120 kg
- Machine dimensions:
- 770 x 790 x 1320 mm
Explore our options
Customize your VDT 5060 diptank to your needs
Audionvac
Use the Audion Diptank in combination with one of our vacuum packaging machines from the Audionvac range for the best packaging result.
Isolation balls
Special designed fully insulated balls to avoid heat loss / against evaporation of the water inside the VDT 5060 diptank.
Let's have a chat
Do you want to know what the Audionvac VDT 5060 diptank can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most
