CS-Matic 100
Premium automatic side sealer with continuous side- and longitudinal intermittent sealing system
Interested in our CS-Matic 100?
We are more than willing to support you with your request or run a demo with your packaging

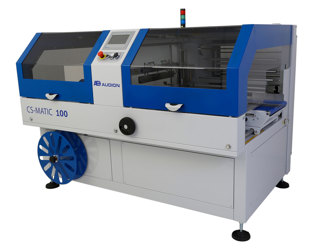

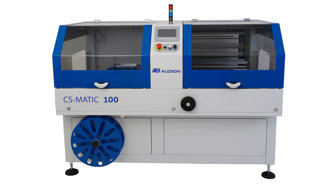

All-electric high performance side sealer
The Audion CS-Matic 100 delivers excellent performance and high speed from a continuous and fully automatic side sealing system.
This high speed packing solution is working from centrefolded polyolefin, PVC or polyethylene film. Product feed and film wrap is achieved by a film inverter, after which the products are processed by an automatic conveyor to be sealed both laterally and crosswise, right-sized, thus saving film.
The Audion CS-Matic 100 facilitates a wide range of product heights and widths and unlimited product lengths through the use of a continuous side-seal system. The integrated product sensors generate the ideal bag length around the product and control the adjustable seal bar (PTFE-coated), allowing virtually any product to be packed at high speed, up to 4200 packs per hour.
The CS Matic 100 can be set up in minutes, is easy to program, and offers multiple operating modes for optimized performance and convenience.
This side sealer does not require compressed air, enabling you to position it anywhere in your production area. Paired with the Audion shrink tunnel TM18 or TM18L it forms an outstanding high-production shrink wrapping packaging system, being one of the most versatile automatic side sealers on the market today.
To sum up, 3 indisputable advantages:
- Unlimited product length can be packed
- Output up to 4200 packs/hour
- Less waste film, resulting in lower costs
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Industry 4.0
Also known as smart industry. The prerequisite for this type of environment is that the whole (production) process runs fully automatically, from the input of raw materials to the dispatch of a finished product. The CS-Matic 100 is designed and built according to these advanced concepts.
Piece of cake
That is the set-up of the CS-Matic 100. The infeed conveyor is released from the square for easy product loading and processing. Quick film changeover and 50 program memory allow for a quick product setup-up. These are just a few examples of the features built-in the CS-Matic 100.
Make from every operator an expert
The 7“ full color touch screen makes it easy to navigate through the interfaces. Pop-up key packing statistics like production rate and efficiency in a second and continual monitoring of product length to detect packing errors. The CS-Matic 100 makes from every operator an expert - control it!
Use different materials
The Audion CS-Matic 100 can handle centrefolded polyolefin, PVC or polyethylene film. When using coex mailer film the CS Matic Orderfulfillment version is available, equipped with photocell sensor for non-transparent or printed film.
Videos

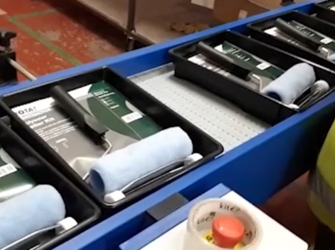

CS-Matic 100 paint rollers
CS Matic in combination with shrink tunnel to pack paint rollers
Watch video
A data-driven packaging machine
This all-electric automatic packer with continuous side sealer and a longitudinal intermittent sealing system is ready for the future and built with the following features:
- Automatic adjustment of the center seal
- Automatic control of the sealing bar height
- User-friendly LCD control panel, a 7” full-colour touch screen
- Storage / readout of process statistics (counter, measurements of pack length, real time output, machine performance, control of irregular packs)
- Conveyor speed electronically adjustable
- Single pack/ multi-pack mode
- Continuous fully electric 4.0 packer with 2 belts
- Cross sealing bar with PTFE-coated sealing blade controlled by an inverter and encoder
- Faulty packs detection
- Inverter and encoder controlled
- This system is able to check all operations, simply and precisely
- Power and control section
- Electronically controlled conveyor belt speed
- Reduced power consumption
Benefits
The CS Matic 100 gives you the following benefits
- Very fast cycle:
- Up to 4200 packs per hour.
- Flexibility:
- Possibility of packing single packs or multipacks at any length.
- Easy operation with touchscreen control system:
- Sealtime, seal temperature and belt speed can easily be adjusted.
- Automated sealing:
- Continuous cycle sealing.
- Motorized systems:
- Sealing bar and conveyors are controlled by an inverter and encoder.
- Wide film choice:
- The CS Matic 100 can handle polyolefin, polyethylene and pvc centrefolded film.
- User-friendly touchscreen:
- Easy navigation through the menu structure and safe control of all packaging parameters.
- Built-in safety features:
- An emergency stop button is standard equipped.
Options
The following options are available on the CS Matic 100
- Printed film centering:
- Device for the centering of the printed film.
- Safety photocel:
- To ensure cross seal bar does not make contact with product.
- Polyethylene film:
- Pneumatic cross bar for polyethylene from 15 to 80 my.
- Punch hole:
- Pneumatic cold film hole punch device.
- Long infeed conveyor:
- Longer infeed conveyor + 500 mm.
- Outlet conveyor:
- Protected free rollers outlet conveyor step 46 mm length 1000 mm.
Specifications
More specifications of the Audion CS-Matic 100
- Packaging output:
- up to 4200 packs per hour (depending product size, pack collation and type of film)
- Speed of conveyors:
- 10 - 30 m/min
- Maximum product height:
- 200 mm
- Maximum product width:
- 400 mm
- Maximum product weight:
- 30 kg
- Sealing length:
- 500 mm
- Maximum size of film:
- 600 mm (centrefolded) - ø 350 mm
- Usable films:
- Polyolefin (up to 30µ), Polyethylene (from 15 to 80µ with option sealing bar for PE)
- Machine size (L x W x H):
- 2170 x 1875 x 1655 mm
- Machine weight:
- 715 Kg
- Consumption:
- 2330 W
- Power supply:
- 380 - 415 V, 3Ph, 50/60 Hz
Explore our options
Customize your CS-Matic 100 to your needs
Safety photocell
To ensure cross seal bar does not make contact with your product.
Stainless steel
Stainless steel frame for applications in the food industry.
Shrink tunnel
For a strong, high clarity protection and professional presentation of your product. The tunnel is equipped with a heating element that shrinks the film wrap around the product, when moving through the machine.
Conveyor
With the Audion conveyors you can easily move your product to the Audion CS-Matic 100. The conveyor can be adjusted according to the size and shape of your product to create a process as smooth as possible. This will increase your production efficiency and effects the output in a positive way.
