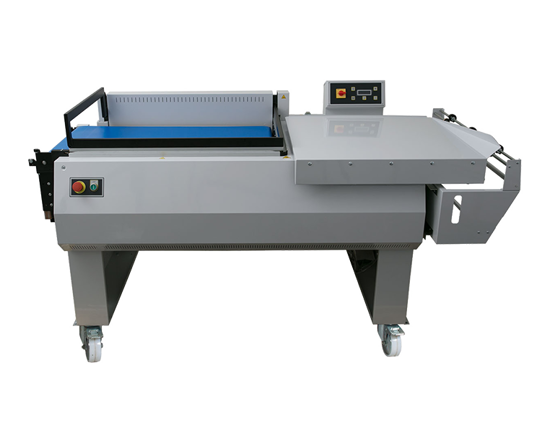

L 800SA

The Audion L 800SA is known for its flexibility, top quality European built and richly equipped as a standard. Seal and wrap easily various sizes of products. The automatic seal cycle and discharge conveyor facilitate high productivity. Combining the L 800SA with a TE-Matic shrink tunnel creates a professional and fast seal & shrink wrap packaging line.

Seal length

L 800SA

Product information

L 800SA

The Audion L 800SA L sealer is used to pack your products easily and fast with shrink or polyethylene centrefolded film. By connecting the optional shrink tunnel to this L sealer you create a full seal shrink packaging line designed to increase your productivity up to 900 packs per hour*.

No extensive training is necessary, the large easy to read LCD screen guides you easily through the various programs. Semi-automatic operation via push button or foot switch or fully automatic with PLC controlled timer. The automatic scrap film rewinding system rewinds the waste film automatically.

The L-sealers can be used in combination with our shrink tunnels, like the Audion TM serie.

* The stated speed can change according to the product size, the pack collation and the type of film used.

Benefits

The Audion L 800SA gives you as end-user the following benefits

User-friendly control panel:: Machine information, counter, sealing temperature settings, conveyor speed, automatic cycle mode setting, 10 operating recipes can be stored, and failure codes indication
High productivity: The semi-automatic seal frame together with the motorized discharge conveyor increases your packaging output considerably.
Smooth production flow:: Can be operated semi automatically via push button or foot switch. Can also be operated fully automatic with PLC controlled timer
High quality seal:: Closed-circuit liquid-cooled sealing bars, ensure consistent seal quality independent of the operator
Modularity:: Easily combined with shrink tunnel
High ergonomics:: Height-adjustable work table to facilitate the ideal work height
Mobile product-holding plate:: Not attached to the film reel support; this allows a better adjustment of the film to the pack size and limites the waste of film.
Sustainable:: Build and design to minimize power consumption
Safey features:: Emergency stop push button

Specifications

Please see below more specifications of the Audion L 800SA

Get drawing

Model:: Semi-automatic L sealer
Article number:: L 800 SA
Seal length:: 870 x 620 mm
Maximum product dimensions:: 870 x 620 x 300 mm (these dimensions are not possible simultaneously)
Max. products height:: 300 mm (depending on product length and width)
Seal width:: 0,7 mm
Covering:: Epoxy
Speed:: up to 900 packs per hour
Type of film:: PVC, PO (Polyolefin) and PE (Polyethylene), centre folded
Maximum film width:: 800 mm (centre folded), ø 300 mm
Thickness of film:: up to 50 micron
Max. weight of the package:: min: 100 gram max: 18 kg
Dimensions:: 2015/3050 x 1055 x 1125 mm
Weight:: 247 kg
Voltage:: 230V-1ph-50Hz

Everything-under-one-roof, match the L 800SA with Audion film

Click here

Entrepreneurship

We love challenges and seize opportunities. It is simply in our DNA.

Commitment

We are dedicated to deliver a high customer value and customer satisfaction which form a paramount contribution to our success.

Co-operation

Our broad knowledge of customer needs and our global, highly committed dealer network, sharing market insights lead to demand-driven innovations, building long lasting relationships.

The L 800SA in action

This reliable L-sealer can considerably increase your packaging capacity. It is equipped with a user-friendly control panel, fitted with magnetic seal frame closure and an automatic winding system for film waste.

After inserting the product the frame comes down by pushing the start button. Electromagnets hold down the frame during sealing and the frame opens automatically when finished.
The system allows easy and accurate monitoring of all packaging operations, such as the seal time, seal temperature, delay time for automatic discharge of the product, status of the machine and the number of packs produced by an electronic pack counter.
