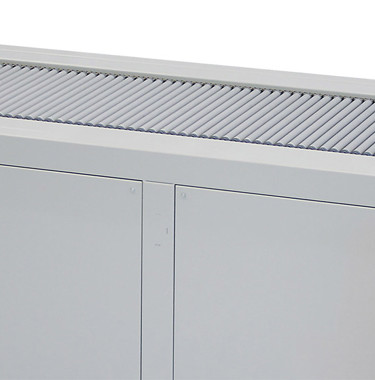

ACC 2000 4 R HERO

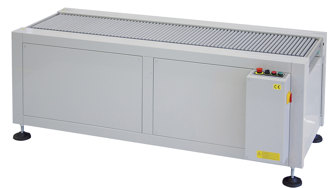

ACC 2000 4R

Motorized infeed conveyor with free-running rollers

ideal for items longer than a meter

Interested in Audion shrink machine infeed conveyors?

International Sales

We are more than willing to support you with your request or run a demo with your packaging

Infeed conveyor for shrink packaging long items

The ACC 2000/4R is suitable in combination with the Audion CS Matic 100 continuous shrink machine and is ideal for lengthy products longer than one meter. This motorized infeed conveyor is equipped with free-running rollers that are pulled forward by a chain system.

To maximize your production output and production convenience you can manage your throughput on the synchronized speed regulator on the CS Matic 100

To sum up:

  • Motorized conveyor for an optimized workflow and improved production convenience
  • Ideal for lengthy products longer than a meter
  • 2 meter free running roller belt with 2 chains that pull the rollers forward
  • The ACC 2000 4R can be installed in front or behind the CS matic 100 side sealer
  • Synchronized speed regulator 7,5-36 meter/minute programmed on the CS Matic 100 control panel
ACC 2000 4 R

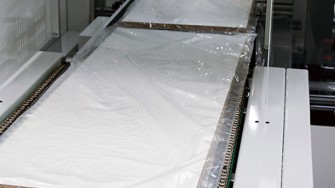

ACC 2000 4R

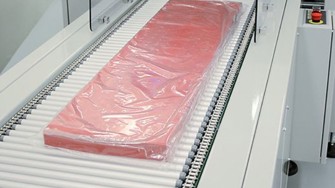

ACC 2000 4R (2)

This makes our machine unique

We work together with you in providing the best quality packaging machines to help you grow your business

Perfect integration

The ACC 2000 4F infeed conveyor can be installed directly next to your CS Matic 100 for a seamless integration into your production line with optimized output.

Heavy-duty design

Sturdy design with a 2-meter long conveyor with free-running rollers that enable a subtle infeed of objects longer than one meter

Stop button

If an error occurs, the stop button can be used to stop the infeed process immediately.

Synchronized speed regulator

The throughput speed is controlled on the CS Matic 100 control panel and runs synchronously with the machine from 7,5-36 meters/minute.

Benefits

The Audion Roller conveyor 2000 4R gives you the following benefits.

Equipped with free running rollers:
To subtly move lengthy products >1 meter
Optimized workflow:
Provides a stable infeed of your products to your Audion CS Matic 100 continuous shrink machine
Synchonized speed regulator:
Conveyor speed settings are managed from the control panel of the continuous packaging machines for optimized performance
Equipped with stop button:
When an error occurs the conveyor can be stopped with an emergency stop button

Everything-under-one-roof, match your shrink machine with Audion film

Click here

Let's have a chat

Do you want to know what the Audion ACC 2000 4R can offer for your company? Please feel free to contact us as we are looking forward to exploring together which packing solutions benefit you most.
