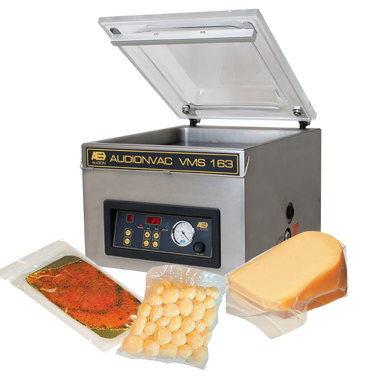

Audionvac VMS 163
Powerful tabletop top vacuum chamber machine with 21 m3/h vacuum pump designed for optimized product care and flexibility
Interested in our Audionvac VMS 163?
We are more than willing to support you with your request or run a demo with your packaging
Robust, Powerful, Flexible, Efficient and Extra chamber size
These are all adverbs belonging to the Audionvac VMS 163. This vacuum chamber is richly equipped as a standard. A wide selection of options are available to tailor it for you to the best possible product care.
Being the bigger brother of the Audionvac 153: same features but a bigger chamber size, this vacuum packaging machine allows you to pack longer products. Optional a second seal bar can be mounted at the back of the chamber, realizing extra packaging output.
The Audionvac VMS 163 is equipped with an A-branded high-quality powerful 21 m3/h vacuum pump performing a high vacuum level in short cycle time.
The digital control panel gives a clear view of the packaging parameters and has a splashproof design. It doesn’t matter if you are a first time user or an experienced user the display guides itself.
To sum up:
- Fully customizable to your packing needs
- 10 program memory and time controlled
- Soft air feature included
- 1 seal bar (front); 420 mm, optional 2nd seal bar (back)
- Double seal (2 convex seal wires)
- High lid
- Optimized production output / large chamber
- Powerful 21 m3/h vacuum pump
This makes our machine unique
We work together with you in providing the best quality packaging machines to help you grow your business
Service & Cleaning
Ease of cleaning is foremost in the design of our machines. Made of stainless steel, deep drawn chamber, sealing systems cable-free and round corners. All to reduce service and avoid downtimes due to maintenance. Cleaning should be easy and fun and Audion attaches great importance to this.
High quality chamber
The chamber of the Audionvac VMS 163 has rounded edges to ensure the greatest hygiene. Leaking fluid is collected in the chamber recess. The stainless steel vacuum chamber is deep-drawn. The lid is made of high-quality acrylic and permits permanent process monitoring.
High quality convex seal wires
This ensures residue being pressed out between the film layers of the bag during the seal process, limiting the risk of leakage. These convex seal wires of Audion empower a strong seal resistance thanks to the round shape, facilitating easy separation of the residue.
The perfect package
Synergy of contact pressure, seal temperature and seal time produces optimum fusing results.The Audionvac makes sure the values of the above mentioned variables are in perfect balance – to create the perfect seal and perfect package.
Videos
Robust and durable
The Audionvac VMS 163 is a solid table top vacuum chamber with maximum pump capacity. Made from high quality materials and built for a long lifetime.
Standard richly equipped with:
- Time control & 10 program memory
- Soft air to vacuum seal sharp products
- Seal bars easily removable for cleaning and maintenance purposes
- 21 m3/h vacuum pump
- Machine cycle: 15-35 sec
- Double seal (2 convex sealing wires)
- Standard 1 seal bar (front): 420 mm
- Optional 2 seal bars front and back which doubles your packing capacity
- Pump maintenance and cleaning program
- Deep drawn stainless steel vacuum chamber
- Maintenance friendly and easy to clean construction
- Stainless steel / Cable-free seal bar construction
- Insert plate for a faster cycle and product adjustment
- 3 year warranty
Benefits
The Audionvac VMS 163 gives you the following benefits
- Optimum hygiene:
- Standard double seal (2 wires); convex (round) sealing wires for safer sealing results.
- Time control:
- To set the time for vacuum, gas and seal cycles for a constant and guaranteed end result.
- Soft air:
- Controlled airflow, recommended for packing fragile or sharp products. Prevents damage of product and vacuum bag.
- High packaging capacity:
- The extra large chamber allows you to pack larger products or install an (optional) 2nd sealbar for increasing the number of bags per cycle.
- 10 program memory:
- Quick selection of the correct program for your products.
- Fast cycle:
- Insert plate is standard included, to create a faster cycle and/or to create a better product positioning.
- Ease of use:
- User friendly digital control panel, plug and play
- Multicycle:
- Alternate vacuum and gas flush (max 5 cycles) in order to reduce the residual oxygen level. Only supplied with gas flush option.
- Vacuum pump:
- 21 m3/h vacuum pump for a fast packaging cycle.
- Maintenance friendly:
- Easy pump maintenance and cleaning program; seal bar is easily removable for cleaning and maintenance.
- High lid:
- High transparent lid, increases your capacity and package size flexibility.
- Chamber:
- Stainless steel easy to clean deep chamber - for medium sized packages.
- Customizable:
- Your VMS 163 can be configured with several standard available options, to get the best fit to your product.
- Warranty:
- 3 years.
Options
The following options are available on the Audionvac VMS 163
- Cut-off seal:
- Cut-off seal consists of one 3,5 mm convex seal wire and one 1,1 mm round cutting wire to easily tear off the residual plastic.
- 1-2 cut-off seal:
- Same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
- Wide seal:
- 8 mm flat seal for a more aesthetic and professional sealing result.
- Bi-active 5 mm seal:
- Recommended to use when vacuum sealing aluminum or thicker bags. The vacuum bag is being sealed from both sides of the bag (up and down seal bar). The machine will be equipped with flat aluminum lid with transparent window.
- ESD (Electrostatic Discharge):
- With the ESD option, all surfaces are made of conductive material that drains electric current to the earth terminal. With no statically charged components in the machine, delicate electronic products such as wafers, chips, motherboards and prints are protected from electronic damage.
- Second seal bar:
- An extra seal bar can be added in the back of the chamber increasing your packaging output.
- Sensor control:
- The vacuum cycle will stop when the exact end vacuum level has been reached. In this way a constant and guaranteed vacuum is reached.
- Liquid control:
- The liquid control sensor detects the evaporation of liquid products. The machine stops extracting the air and proceeds automatically to the next phase, the sealing of the vacuum bag. This option prevents damage to your machine and to your liquid product.
- Inclined plate:
- For packing liquids and powders. The bag can be positioned in a certain angle ensuring that the product stays at its place.
- Gas flush:
- Enables Modified atmosphere packaging (MAP): a gas or nitrogen can be added for optimizing shelf life or realizing extra protection of your product.
- Number of gas nozzles:
- Per sealing bar - front (2); front/back (2/2).
- External pump:
- Vacuum pump and vacuum chamber are separated from each other to avoid evaporation of particles by the vacuum pump in the same room. Used in cleanroom where small particles can affect the manufacturing and quality of a product or assembly.
- Trolley:
- A compact trolley equipped with swiveling castors with brakes, ideal to move the vacuum machine.
- Validation:
- For controlling process variables (pharma/medical products). Compatible with ISO 11607-2 validation requirements for sealing (bi-active seal option mandatory).
- Alternative power supply:
- 115V-1P-60Hz | 220V-1P-60Hz | 200V-3P-50/60Hz
Spare parts
Discover the available spare parts for your VMS 163. Audion original quality.
- Spare parts
- ← Click to select the required spare parts for your VMS 163
Specifications
More specifications of the Audionvac VMS 163
- Seal bar front:
- 420 mm (standard)
- Seal bar front-back:
- 420 / 420 mm (option)
- Seal width:
- 2 x 3,5 mm double seal (2 convex sealing wires)
- Effective chamber size (LxWxH):
- 460 x 420 x 180 mm
- Pump capacity:
- 21 m3/h
- Digital control panel:
- 10 program memory
- Machine cycle:
- 15 – 35 sec
- Chamber material:
- Stainless steel chamber and transparant lid
- Housing material:
- Stainless steel
- Type of film:
- PA/PE, vacuum bags
- Thickness of film:
- 2 x 150 micron
- Power supply:
- 230V-1P-50Hz (standard)
- Power consumption:
- 0,8 kW
- Weight:
- 72 kg
- Machine dimensions (LxWxH):
- 616 x 493 x 440 mm
Explore our options
Customize your Audionvac VMS 163 to your needs
Seal configurations
Optimize your vacuum packaging operations by adding an additional seal bar at the back side of the chamber, increasing your output. Or choose for the bag-cut off seal, where the upper seal wire is a cutting wire, realizing to tear off residual plastic above the seal for optimized hygiene.
Cut-off or 1-2 cut off seal
Cut-off seal, to easily tear off the residual film for optimized hygiene. 1-2 Cut off seal, same as cut-off seal but in addition with 1-2 cut-off seal the time and settings of the seal and cutting wire can be managed separately.
Liquid control:
The liquid control sensor detects the evaporation of liquid products. The machine stops extracting the air and proceeds automatically to the next phase, the sealing of the vacuum bag. This option prevents damage to your machine and to your liquid product.
Sensor control
Vacuum packaging machines equipped with Sensor control calculate when the pre-set percentage has been achieved. This guarantees a constant end vacuum of your package. Always. Especially recommended when packing various types of products with different volume.
Gas flush
Injecting a gas before the sealing phase increases the product's shelf life, it offers extra protection and it prevents the product from colouring.
Wide seal or Bi-active seal
An 8 mm wide seal is possible to give the vacuum bag an aesthetic and professional look. When sealing aluminum or thicker bags a bi-active seal system can be integrated, performing a 5 mm seal from both sides of the bag: up and down. This bi-active seal is mandatory when a validated seal process is required.
