Medical rotary sealer

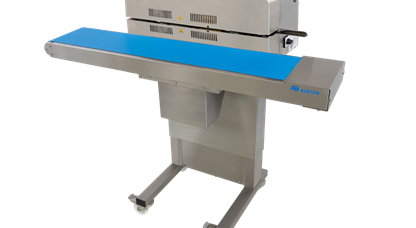

D 542 AVTSV Validatable Vertical Continuous Band Sealer

Validatable heavy-duty vertical bandsealer for uncompromised seal integrity

1. Seal width: 10 mm cross-hatch seal
2. Throughput: Max. 10 meter per minute
3. Control panel: Audion Touch Techware Equipped with Audion Temperature Controller (ATC) + 7 inch touchscreen (ADC)
4. Integrated printer: Optional
5. Support stand: Yes
6. Conveyor belt: Yes
7. Max. weight on conveyor 10 kg

Contimed D 660 V

Validatable compact stainless steel rotary sealer suitable for sealing single layer PE or PP

1. Validatable: Yes
2. Seal width: 9 mm high profile knurled seal
3. Throughput: 8 meter/minute (fixed)
4. Control panel: LCD, 2 lines, membrane keyboard
5. Interface: USB port, RS-232 port
6. Integrated printer: No
7. Conveyor belt: Optional

Contimed D 662 MV

Rotary medical sealer with complete control of sealing parameters

1. Validatable: Yes
2. Seal width: 12,5 mm multiline
3. Throughput: 8 meter/minute (fixed)
4. Control panel: LCD, 2 lines, membrane keyboard
5. Interface: USB port
6. Integrated printer: No
7. Conveyor belt: Optional

Contimed D 666 MPCV

Advanced medical rotary sealer with integrated printer, optimized traceability features

1. Validatable: Yes
2. Seal width: 15 mm multiline seal
3. Throughput: 10 meter/minute (fixed)
4. Control panel: 2 lines LCD, membrane keyboard
5. Interface: COM port RS232 / USB port
6. Integrated printer: 9 dots matrix, 1 line
7. Conveyor belt: No

Contimed D 775 MPCV

Advanced medical rotary sealer with integrated 2 line printer, optimized connectivity

1. Validatable: Yes
2. Seal width: 15 mm multiline seal
3. Throughput: 3 to 13 meter/minute (adjustable)
4. Control panel: Touchscreen, 24 seal recipe memory
5. Interface: 3x USB /2x RS232 /1xEthernet/1x PS2/1xVGA
6. Integrated printer: 18 dots matrix, 2 lines
7. Conveyor belt: No
